Products
Turning Machine(90°)
high quality
Description
Download
| Chocolate Functional Machine Series | |||||
| No. | Product | Running Speed | Power | Weight | Dimension |
| C1.1 | Mold-closing Machine | ≤8 mould/min | 1.5 Kw | 100.0 Kg | 1.5m*1.1m*1.3m |
| C1.2 | Cold-pressing Machine | ≤12 mould/min | 6.0 Kw | 220.0 Kg | 1.5m*1.3m*1.60m |
| C1.3 | Vibration Machine | ≤15 mould/min | 0.9 Kw | 100.0 Kg | 1.5m*1.3m*1.20m |
| C1.4 | Box-packing Machine | ≤10 mould/min | 0.6 Kw | 80.0 Kg | 1.5m*1.1m*1.2m |
| C1.5 | Turning Machine(180°) | ≤15 mould/min | 0.6 Kw | 100.0 Kg | 2.2m*1.3m*1.2m |
| C1.6 | Turning Machine(90°) | ≤15 mould/min | 0.6 Kw | 60.0 Kg | 1m*1m*1.2m |
| C1.7 | Conveying Machine | ≤15 mould/min | 0.6 Kw | 80.0 Kg | 1.5m*1.1m*1.2m |
| C2.1 | Whole Nuts-putting Machine | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.2 | Biscuit-placing Machine | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.3 | Biscuit-feeding Machine(Regular biscuit) | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.4 | Stick-placing Machine(Vertical) | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.5 | Stick-placing Machine(Horizontal) | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.6 | Nuts-feeding Machine | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.7 |
Biscuit-feeding Machine (Irregular Biscuit) |
≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |

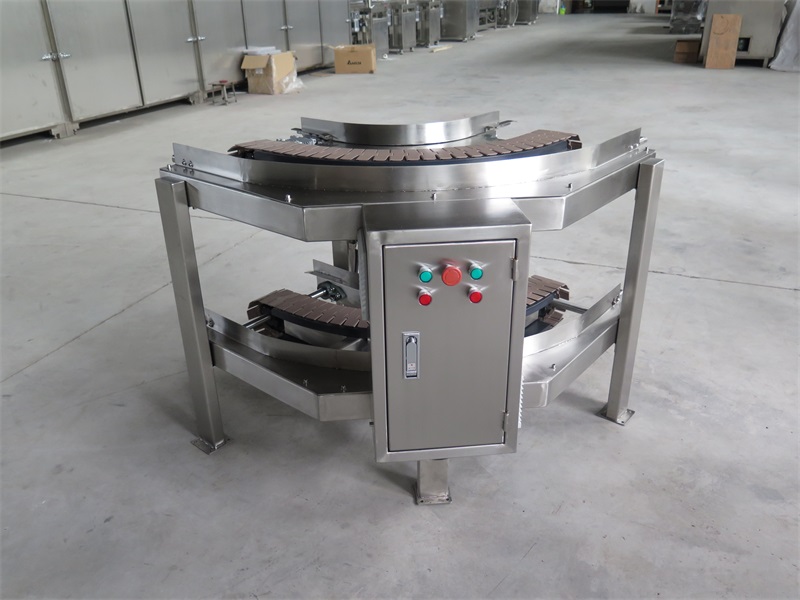

Equipment Overview
The Turning Conveyor 90° can make a “┓”turn, so the production line can make any turn applicable for equipment layout of the specific user of workshop.
Equipment Description:
Turning Conveyor【Type: ZW-90】
■ Smooth & high-efficiency 90° turning
■ Convenient conveying with link plate;
■ Small land occupation by compact structure;
■ Interface with any single machine of production line.
