Servo Depositor
Description
Download
| Chocolate Depositor Series | |||||
| No. | Product | Running Speed | Power | Weight | Dimension |
| B1 | Servo Depositor | ≤15 mould/min | 5.8 Kw | 230.0 Kg | 1.5m*1.2m*1.8m |
| B2 |
One Shot Depositor(Vertical) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B3 | One Shot Depositor(Horizontal) | ≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B4 |
Decoration Depositor(Vertical) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B5 |
Decoration Depositor(Horizontal) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B6 |
Large Capacity One Shot Depositor(Vertical) |
≤24 mould/min | 11.6 Kw | 350.0 Kg | 1.5m*1.25m*1.8m |
| B7 |
Large Capacity One Shot Depositor(Horizontal) |
≤24 mould/min | 11.6 Kw | 350.0 Kg | 1.5m*1.25m*1.8m |
| B8 | Mixture System & Depositor | ≤8 mould/min | 9.0 Kw | 245.0 Kg | 1.5m*1.25m*1.7m |
| B9 | Aerating Depositor | ≤12 mould/min | 3.0 Kw | 230.0 Kg | 1.5m*1.25m*1.9m |
Equipment Overview
This depositor can precisely control the flow by servo control mode, it’s applicable for precise depositing of all kinds of chocolates.
Equipment Description

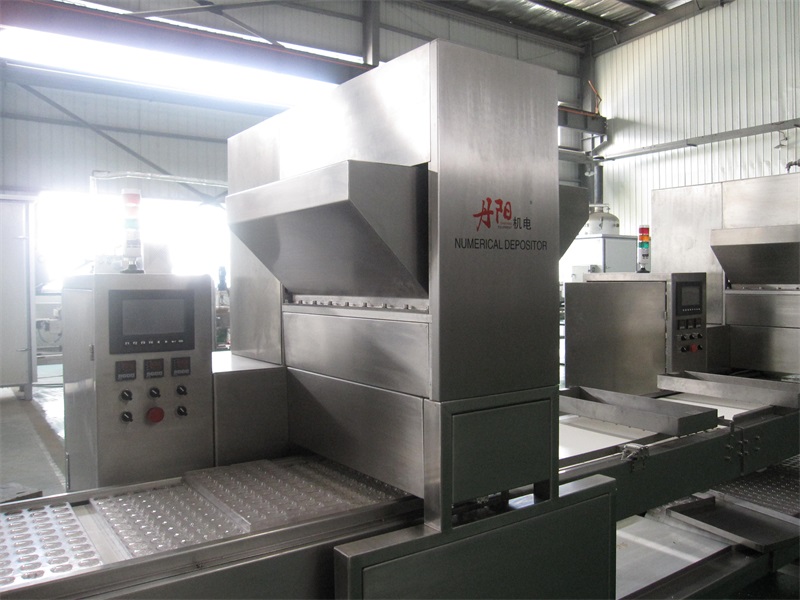

Servo Depositor【Type:SV-48QB】
■ Piston mode: Vertical;
■ Depositing capacity: ≤500kg/h;
■ Depositing precision: ≤±0.1g;
■ Servo system: Two-axis servo system;
■ Energy saving and environmentally friendly: Patent structure design is adopted, energy saving and environmentally friendly effect can achieve more than 50%;
■ Piston: 48 sets;
■ Non-leakage design: Innovative design is adopted to ensure no paste leakage from piston；
■ Operating system: Friendly and instructive interface is easy for learning and operating;
■ Heat preservation: Good heat preservation is available for the hopper and deposing plate;
■ Replacement of depositing plate: Easy replacement and low use cost.
