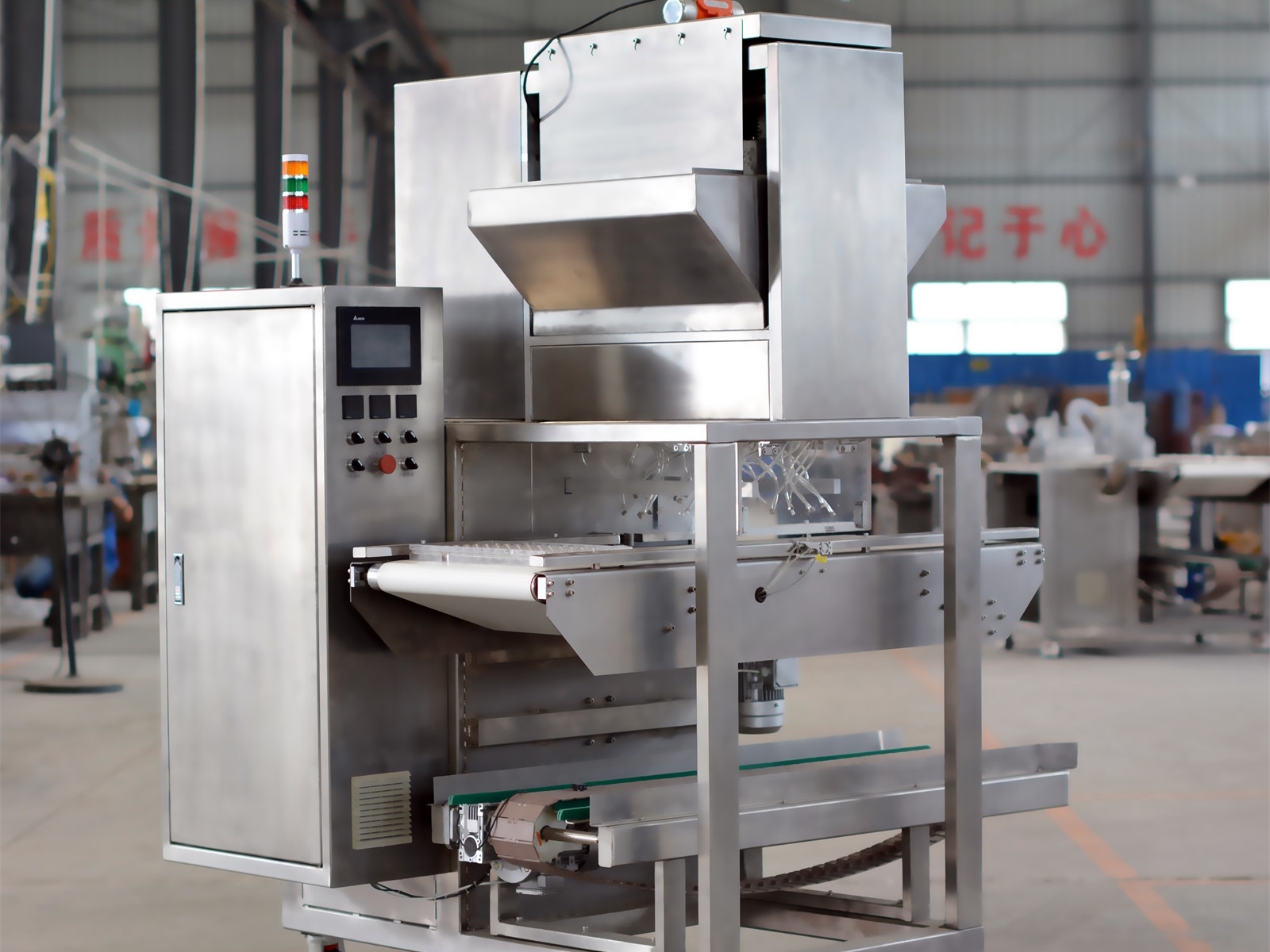

One Shot Depositor(Vertical)
Description
Download
| Chocolate Depositor Series | |||||
| No. | Product | Running Speed | Power | Weight | Dimension |
| B1 | Servo Depositor | ≤15 mould/min | 5.8 Kw | 230.0 Kg | 1.5m*1.2m*1.8m |
| B2 |
One Shot Depositor(Vertical) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B3 | One Shot Depositor(Horizontal) | ≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B4 |
Decoration Depositor(Vertical) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B5 |
Decoration Depositor(Horizontal) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B6 |
Large Capacity One Shot Depositor(Vertical) |
≤24 mould/min | 11.6 Kw | 350.0 Kg | 1.5m*1.25m*1.8m |
| B7 |
Large Capacity One Shot Depositor(Horizontal) |
≤24 mould/min | 11.6 Kw | 350.0 Kg | 1.5m*1.25m*1.8m |
| B8 | Mixture System & Depositor | ≤8 mould/min | 9.0 Kw | 245.0 Kg | 1.5m*1.25m*1.7m |
| B9 | Aerating Depositor | ≤12 mould/min | 3.0 Kw | 230.0 Kg | 1.5m*1.25m*1.9m |
Equipment Overview
This One Shot depositor is featured by strong function, remarkable advantages, high output of filling, good quality, low energy consumption and little waste. Its power consumption is only 50% of similar machine, and the paste loss is only 25% of similar machine.
Equipment Description
One Shot Depositor【Type:SJ-48QB】
■ Piston mode: Vertical;
■ One shot depositing capacity: ≤500kg/h;
■ Filling rate: ≤90%;
■ Depositing precision: ≤±0.1g;
■ Servo system: Filling system with five-axis servo linkage;
■ Energy saving and environmentally friendly: Patent structure design is adopted, energy saving and environmentally friendly effect can achieve more than 50%;
■ Piston: 48 sets;
■ Non-leakage design: Innovative design is adopted to ensure no paste leakage from piston;
■ Operating system: Friendly and instructive interface is easy for learning and operating;
■ Heat preservation: Good heat preservation is available for the hopper and deposing plate;
■ Replacement of depositing plate: Easy replacement and low use cost;
■ Upgrade decoration: Upgrading of a little hardware and operating system can ensure easy decoration function.
