Multi-function Demolding Machine
Description
Download
|
Chocolate Demolding & Pre-heating Machine Series |
|||||
|
A1 |
Heating Conveying Machine |
≤15 mould/min |
6.0 Kw |
120.0 Kg |
6m*1.1m*1.2m |
|
A2 |
Vacuum Demolding & |
≤10 mould/min |
9.0 Kw |
210.0 Kg |
3.6m*1.1m*1.8m |
|
A3 |
Rapping Demolding & |
≤10 mould/min |
9.0 Kw |
230.0 Kg |
3.6m*1.1m*1.8m |
|
A4 |
Multi-function Demolding Machine |
≤12 mould/min |
4.2 Kw |
350.0 Kg |
4.2m*1.5m*1.8m |
|
A5 |
Large Demolding Machine |
≤24 mould/min |
5.2 Kw |
420.0 Kg |
4.2m*3.8m*1.9m |
|
A6 |
Heating Tunnel |
≤15 mould/min |
5.3 Kw |
450.0 Kg |
2.2m*1.2m*2.4m |
|
A7 |
Small Heating Machine |
≤15 mould/min |
3.5 Kw |
120.0 Kg |
1.5m*1.1m*1.2m |

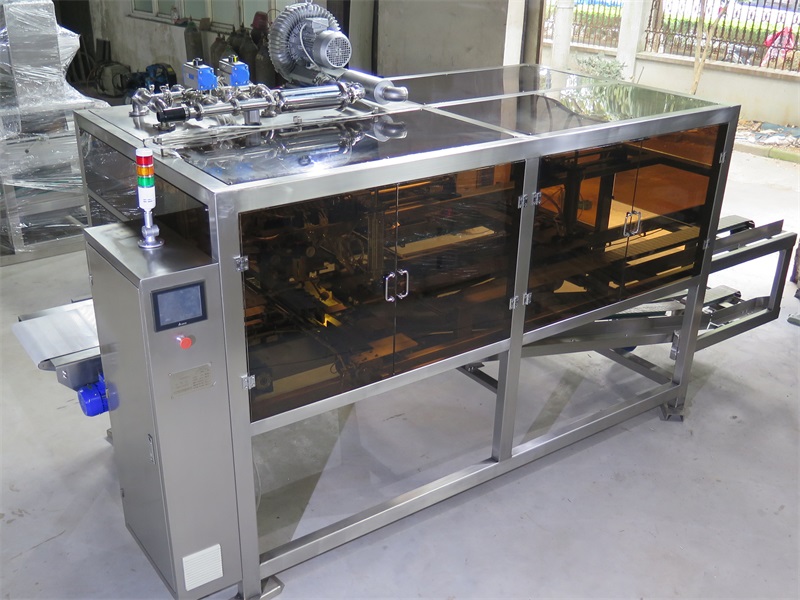

Equipment Overview
This multi-function demolding machine integrates the vacuum and rapping, the user can choose different demolding mode as per products. It enhances the 3D demolding speed, making the demolding rate up to 100 %.
Equipment Description
■ Mode of demolding : By vacuum and rapping；
■ Demolding ability: 3D mold≤ 500kg/h;
2D mold ≤500kg/h;
■ Over turning and butt joining: These features provide to achieve the packaging of the product as per the direction;
■ Auto packaging: The product can be directly packed into box immediately after demolding , which is easy and cost saving;
■ Flexible parameter setting: The number and frequency of mold-rapping, the distance and angle of the connection, the parameter setting of flexibility is more flexible to the demolding of different products;
■ 3D demolding system: Auto demolding and closing of 3D mold;
■ PLC + servo control system: Electronic control system using the concept of integration and optimization makes the PLC and servo control more efficient and reliable;
■ Smart connection with the packing machine: Once the packaging machine breaks down, the device will automatically stop;
■ 100% demolding rate: Full product demolding can be achieved if the mold demolding slope design is reasonable, as well as with normal product cooling;
