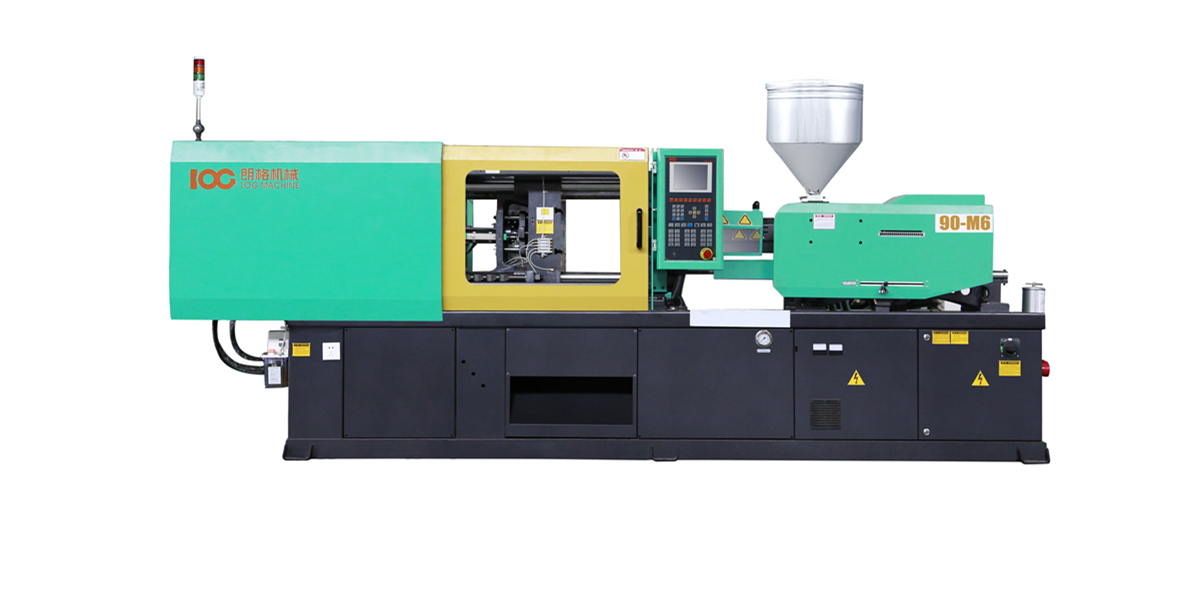

LOG-M6 90T Variable Pump Injection Molding Machine

high quality

RFQ

Description

Specifications of LOG90

INJECTION		LOG90
INJECTION		A	B	C
Shot volume	cm³	113	154	181
Shot weight (ps)	G	106	144	170
Shot weight (ps)	oz	4	5	6
Max injection rate	cm³/s	59	80	95
Screw diameter	Mm	30	35	38
Plasticizing rate	Kg/h	22	36	45
Injection pressure	Mpa	243	179	152
Screw L:D ratio		22:1	20:1	18:1
screw speed	r/min	0~180
CLAMPING
Clamping force	Kn	900
Opening stroke	Mm	320
Platen size	MmXmm	540*540
Space between tie bars	MmXmm	360*360
Mold thickness (Min--Max)	Mm	150~360
Hydraulic ejection stroke	Mm	100
Hydraulic ejection force	Kn	31
POWER UNIT
Hydraulic system pressure	Mpa	16
Pump motor	Kw	9
Heating capacity	Kw	6.5
Number of temp control zones		3+ (nozzle)
GENERAL
Dry-cycle time	sec	1.1
oil tank capacity	L	160
Machine dimensions	Mxmxm	4.21.11.7
Machine weight	kg	2800

Clamping Unit

1 .Toggle adopting the conjoined structure, improving the hardness of toggle, ensuring the uniform of toggle manufacture-size, minimizing the gap between pipe and pin, improve the accuracy and application life of toggle.

2.First clamping platen using the box-type structure design, (thicken the thickness of platen, improving the hardness of platen, efficiently minimizing the deform caused by the force of tie bar.

3.Unique third-platen flange design, when the third- platen deforms by the pressure, by the support of flange and tie bar. a reverse torque will minimizing the deform of the third-platen.

4. Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting (the mold thickness in manual or automatic mode.

5.Steel bush in clamping unit adopts new structure, arrange rational holes of graphite to improve the effect of steel bush lubrication and the wear-resistance, reduces the usage of lubrication oil.·


Conjoined toggle	High-hardness Platen	Platen Flange	Gear-adjusting ring	Graphite Bush

Injection Unit

1 .Injection unit adopts double-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.

2. Enlarged-cylinder, adopting two-cylinder design, effectively prevent the adhesive- material leaking phenomenon caused by the machine vibration or other reasons while the nozzle is under high-speed operation.

3. Adopting graphite bush, improving the wear- resistance, reducing the frequency of using lubrication oil, effectively improve the cleanness of the injection part.

4.Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.

5.Bridge-style design, for different L/D ratio plasticizing parts.
