Large Capacity One Shot Depositor(Horizontal)
Description
Download
| Chocolate Depositor Series | |||||
| No. | Product | Running Speed | Power | Weight | Dimension |
| B1 | Servo Depositor | ≤15 mould/min | 5.8 Kw | 230.0 Kg | 1.5m*1.2m*1.8m |
| B2 |
One Shot Depositor(Vertical) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B3 | One Shot Depositor(Horizontal) | ≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B4 |
Decoration Depositor(Vertical) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B5 |
Decoration Depositor(Horizontal) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B6 |
Large Capacity One Shot Depositor(Vertical) |
≤24 mould/min | 11.6 Kw | 350.0 Kg | 1.5m*1.25m*1.8m |
| B7 |
Large Capacity One Shot Depositor(Horizontal) |
≤24 mould/min | 11.6 Kw | 350.0 Kg | 1.5m*1.25m*1.8m |
| B8 | Mixture System & Depositor | ≤8 mould/min | 9.0 Kw | 245.0 Kg | 1.5m*1.25m*1.7m |
| B9 | Aerating Depositor | ≤12 mould/min | 3.0 Kw | 230.0 Kg | 1.5m*1.25m*1.9m |

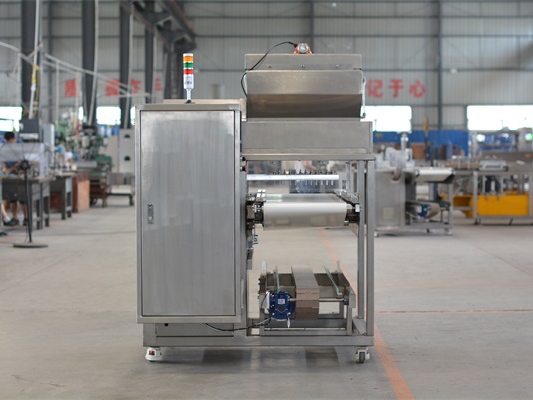

Equipment Overview
This horizontal Big One Shot/Decoration Depositor has strong function and significant advantage. It is very easy with advantages of high efficiency, good quality, low energy consumption and small loss. Its power consumption is only 50% of similar machine, and the paste loss is only 25% of similar machine.
Equipment Description:
Big One Shot/Decoration Depositor【Type:SJ-96QC】
■ Piston mode: Horizontal;
■ One shot depositing capacity: ≤1000kg/h;
■ Filling rate: ≤90%;
■ One shot depositing precision: ≤±0.1g;
■ Decoration precision: 0.05g;
■ Decorating quantity: One color ≤96pcs, two colors ≤48pcs;
■ Servo system: Filling system and decoration system with seven-axis servo linkage;
n Energy saving and environmentally friendly: Patent structure design is adopted, energy saving and environmentally friendly effect can achieve more than 50%;
■ Piston: 96 sets;
■ Hopper feature: Easy to clean and change materials;
■ Operating system: Friendly and instructive filling interface is easy for learning and operating;
■ Heat preservation: Good heat preservation is available for the hopper and depositing plate;
■ Replacement of depositing plate: Easy replacement and low use cost.
