Products
Dust Collector Valves
Delivery in the month,1 year warranty,Quality assurance
Description
Download

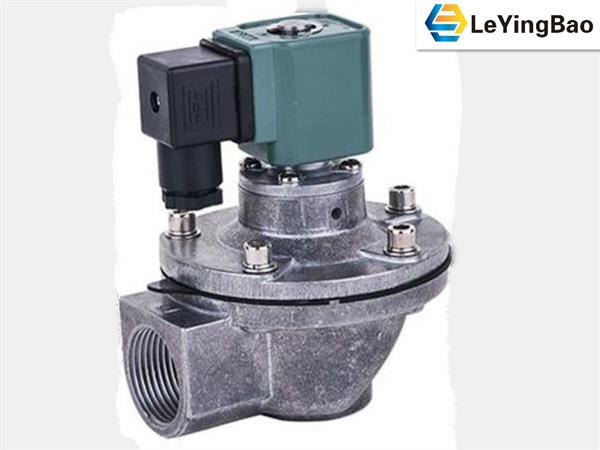

Dust Collector Valves
Dust collector valves are used for controlling the compressed air of dust collector systems;
Pulse jet valves with fast action for high effective cleaning;
pulse jet valve, also called diaphragm valves is for compressed air in the dust clean blowing system for bag filter system valves.
The pulse valve is controlled by the pilot valve, such as electromagnetic or pneumatic, and can generate pulse diaphragm valve in an instant.
Sequential controller is controlled by sequential control and conditional control.
Product Details
| Model | RMF-Z-20J | RMF-Z-25J |
| Working Pressure | 0.3 ~ 0.8 Mpa | |
| Ambient Temperature | -5 ~ 55 ℃ | |
| Relative Humidity | ＜85% | |
| Working Medium | Clean Air | |
| Voltage | AC110V/AC220V/DC24V | |
| Diaphragm Life | Over One Million Cycles | |
| Orifice | φ 20 | φ 25 |
| Connection Port | G3/4" | G1" |
Overall Dimension
G thread pneumatic pulse valve with fast opening and closing action, easy to install;
dust collectioin pulse valve for compressed air in the dust clean blowing system for pulse bag filters;
Low pressure dust collector valve for efficient operation of the dust collector cleaning system;
Pulse controlled solenoid valve for air bag spare part application
Air operated valve for dust collector.
