Steel Grade	C	Si	Mn	P	S	Cr	Mo	V	Ni
1.2714	0.50 0.60	0.10 0.40	0.60 0.90	≤ 0.030	≤ 0.030	0.80 1.20	0.35 0.55	0.05 0.12	1.50 1.80
1.2713	0.50 0.60	0.10 0.40	0.65 0.95	≤ 0.030	≤ 0.030	0.60 0.80	0.25 0.35	0.07 0.12	1.50 1.80
L6	0.65 0.75	0.10 0.50	0.25 0.80	≤ 0.030	≤ 0.030	0.60 1.20	≤ 0.50	--	1.25 2.00

Dimension

Shape	Thick / Dia. (mm)	Width (mm)
Round	8-800	/
Flat	6-200	20-1000
Block	150-700	200-1500

Delivery Condition

EAF+LF+VD+(ESR), Hot rolled or Forged, Un-machined or Machined surface (Peeled, Turned,

Milled, Grinded), UT 100% Passed.

We offer Annealed and Q+T condition.

Annealed: Hardness≤248HB

Q+T: Hardness 370-410 HB

Characteristics

1. A kind of Nickel-Chrome–Molybdenum-Vanadium steel for hardening in the stream of air or in oil with high hardenability.

2. With high hardness after hardening, good resistance to the tempering, good toughness and good firmness during the heat.

3. It resists quick temperature changes and also thermal fatigue.

4. The steel is well-workable during the heat and well-workable in the soft-annealed state.

Applications

DIN 1.2714 Quenching + Tempering condition is suitable for the application as forging dies, slides, punch heads, extruding stamps press tools, hot shear knives, extrusion press tools, die holders, support tools, tool holders, pressure plates

Heat Treatment

Annealing

650 to 700°C

Slow controlled cooling in furnace at a rate of 10 to 20°C/hr (50 to 68°F/hr) down to approx. 600°C, (1112°F) further cooling in air.

Hardness after annealing: max. 248 HB.

Stress relieving

Approx. 650°C

Slow cooling in furnace; intended to relieve stresses set up by extensive machining, or in complex shapes. After through heating, hold in neutral atmosphere for 1 - 2 hours.

Hardening

830 to 870°C / oil

870 to 900°C / air

Holding time after temperature equalization: 15 to 30 minutes.

Obtainable hardness:52 - 58 HRC in oil, 44 - 50 HRC in air.

Tempering

Slow heating to tempering temperature im- mediately after hardening / time in furnace 1 hour for each 20 mm of workpiece thickness but at least 2 hours / cooling in air. It is recommended to temper at least twice.

A third tempering cycle for the purpose of stress relieving may be advantageous.

What we can offer?

We offer a wide range of steel products in a wide variety of dimensions and executions, acc.to the common international specifications or customerized.

Machining and heat treatment are available.

Also, we advise you in choosing the right materials.

Shape Available

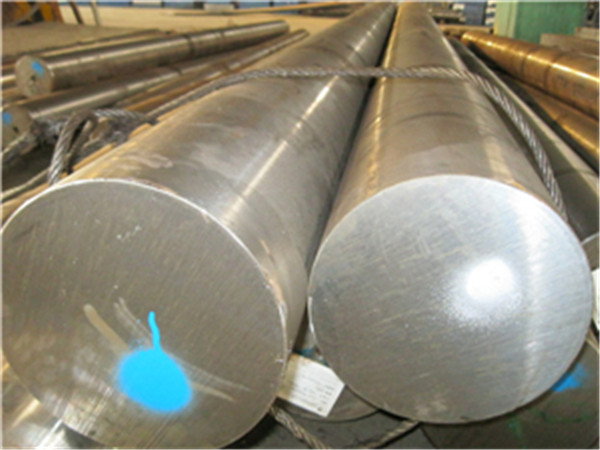

Solid round bar

Flat bar

Square bar

Hexagon bar

Block

Plate

Sheet

Wire rod

Strip

	AISI	DIN	JIS	Stock	Application
Hot Work Tool Steel	H11	1.2343	SKD6	√	Die Casting Dies,Extrusion Dies, Hammer Dies, Ram Dies, Forging Dies etc.
	H13	1.2344	SKD61	√
	H10	1.2365	SKD7
	——	1.2367	——
	L6	1.2714 / 1.2713	SKT4	√
	H12	1.2606	SKD62
	H21	1.2581	SKD5	√
Cold Work Tool Steel	D3	1.2080	SKD1	√	Cutting Tools, Punching Tools, Shear Bladers, Reamers, Thread Rolling Dies, Calipers, Sockets etc.
	——	1.2601	~SKD11	√
	D2	1.2379	~SKD11	√
	——	1.2379 MOD	DC53 (Daido)	√
	D6	1.2436	——
	O1	1.2510	SKS3	√
	O2	1.2842	——
	A2	1.2363	SKD12
	S1	1.2550	——
	S7	1.2357	——
	——	1.2767	SKT6
	L2	1.2210	——
Plastic Mould Steel	P20	1.2311	——	√	Mold Base, Core & Cavity, Bumper Mold etc.
	P20+Ni	1.2738	——	√
	P20+S	1.2312	——	√
	——	1.2316	——
	420	1.2083	SUS420J2	√
	——	——	NAK80 (Daido)	√
Alloy Steel	4120	25CrMo4 / 1.7218	SCM420		Shafts, Gears, Drillers, Chains, Bolts, Nuts, Pins, Suds, Keys, Bites, Crankshafts, Connecting Rods, Came, Couplings etc.
	4135	34CrMo4 / 1.7220	SCM435
	4130	34CrMo4 / 1.7220	SCM430	√
	4140	42CrMo4 / 42CrMoS4 / 1.7225	SCM440	√
	4142	41CrMo4 / 1.7223	SCM440
	4145H	——	——
	4330V	——	——
	4340	34CrNiMo6 / 1.6582	SNCM439
	5115	16MnCr5 / 16MnCrS5 / 1.7131
	5120	20MnCr5 / 20MnCrS5 / 1.7147	SMnC420H
	5140	41Cr4 / 41CrS4 / 1.7035	SCr440	√
	8620	21NiCrMo2 / 1.6523	SNCM220
	8640	40NiCrMo2-2 / 1.6546	SNCM240
	——	18CrNiMo7-6 / 17CrNiMo6 / 1.6587	——
	9840	36CrNiMo4 / 1.6511	——
	E71400	41CrAlMo7-10 / 1.8509	SACM1
	——	34CrAlNi7 / 1.8550	——
Bearing Steel	E52100	100Cr6 / 1.3505	SUJ2	√	Bearing, Shafts etc.
	——	100CrMn6 / 1.3520	——
	——	100CrMo7-3 / 1.3536	——
Spring Steel	5155	55Cr3 / 1.7176	SUP9		Springs
	6150	51CrV4 / 1.8159	SUP10
	9261	60CrSi7 / 1.7108	——
Carbon Steel	1010	CK10 / C10E / 1.1121	S10C		Shafts, Chains, Bolts, Nuts, Pins, Suds, Keys, Bites, Came, Couplings etc.
	1020	C22 / 1.0402	S20C	√
	1040	CK40 / C40E / 1.1186	S40C	√
	1045	CK45 / C45E / 1.1191	S45C	√
	1050	CK50 / C50E / 1.1206	S50C	√
	1055	CK55 / C55E / 1.1203	S55C
	1064	CK60 / C60E / 1.1221	S58C
High Speed Tool Steel	M2	1.3343	SKH51	√	Reamer, End-mill, Hob, Cutter, Bite, Drill, Punch, Tap, Brooch etc.
	M7	1.3348	——
	M42	1.3247	SKH59	√
	M35	1.3243	SKH55	√
	T1	1.3355	SKH2
	T15	1.3202	——
	T42	1.3207	SKH57
