Tool Steel O1 / 1.2510 / SKS3

High quality 1.2510 tool steel, O1 tool steel supplier, SKS3 special steel manufacturer
Tool Steel O1 / 1.2510 / SKS3

Description

Download

DIN 1.2510 / AISI O1 / JIS SKS3 Cold Work Tool Steel

Equivalence

AISI / SAE

DIN / W.Nr

JIS

GB

O1

1.2510

SKS3

9CrWMn
CrWMn


Chemical Composition (%)

Steel Grade

C

Si

Mn

P

S

Cr

W

V

1.2510

0.90
1.05

0.15
0.35

1.00
1.20


0.030


0.030

0.50
0.70

0.50
0.70

0.05
0.15

O1

0.85
1.00

0.10
0.50

1.00
1.40


0.030


0.030

0.40
0.70

0.40
0.60


0.30

SKS3

0.90
1.00


0.35

0.90
1.20


0.030


0.030

0.50
1.00

0.50
1.00

--


Dimension

Shape

Thick / Dia. (mm)

Width (mm)

Round

8-700

/

Flat

1.6-200

20-1000

Block

150-600

200-1500


Delivery Condition
EAF+(ESR) or EAF+LF+VD+(ESR), Hot rolled, Cold rolled or Forged, Spheroidizing Annealed, Hardness≤220HB, Unmachined or Machined surface (Peeled, Turned, Milled, Grinded), UT 100% Passed

Characteristics
1. A kind of low-alloy cold work tool steel
2. With certain hardenability and wear resistance, homogenous and small particle carbides.

Applications
Typical applications for DIN 1.2510 tool steel are blanking, forming, and trim dies, gages, slitting cutters, punches, bolster dies, knock-out pins, thread roll dies, bending dies, plastic mold dies, shims, cams, machine ways, stamps, machine parts, jigs, cutter templates, swaging dies, etc.

Forging Technique

Heat
Temperature

Start Forging
Temperature

Finish Forging
Temperature

Cooling Method

1150 - 1200 °C

1100 - 1150 °C

≥920 °C

Slow cooling


Heat Treatment
Annealing
The recommended annealing practice is to use controlled-atmosphere furnaces. If these are not available, pack-anneal in an inert material. For a quick annealing cycle to develop fair machining properties, heat slowly to 1375 to 1425°F. and cool slowly in the furnace. To develop the lowest hardness and best spheroidization for optimum machinability, heat slowly to 1450°F. and furnace cool at 20 degrees per hour to 900°F. The piece may then be removed from the furnace and cooled in air. Hardness after this cycle will be Brinell 202 max.

Stress relieving
When desirable to relieve the strains of machining, heat slowly to 1050°-1250°F, allow to equalize, and then cool in still air (Strain Relieving).The recommended annealing practice is to use controlled-atmosphere furnaces. If these are not available, pack-anneal in an inert material. For a quick annealing cycle to develop fair machining properties, heat slowly to 1375 to 1425°F. and cool slowly in the furnace. To develop the lowest hardness and best spheroidization for optimum machinability, heat slowly to 1450°F. and furnace cool at 20 degrees per hour to 900°F. The piece may then be removed from the furnace and cooled in air. Hardness after this cycle will be Brinell 202 max.

Hardening
After thorough prhe hardening furnace, operating from 1450°-1500°F, depending on the size of the part.Warm slightly before charging into the preheat furnace, which should be operating at about 1100°-1200°F.

Tempering
O1 is generally tempered in the range of 300°-600°F. Tempering temperatures and resulting Rockwell C hardness, based on a 1 inch round samples oil quenched from 1475°F and tempered for 2 hours, are as follows:

Tempering Temperature °F

Rockwell °C

300

65

350

63

400

62.5

450

61

500

60

600

57

What we can offer?

We offer a wide range of steel products in a wide variety of dimensions and executions, acc.to the common international specifications or customerized.
Machining and heat treatment are available.
Also, we advise you in choosing the right materials.

Shape Available

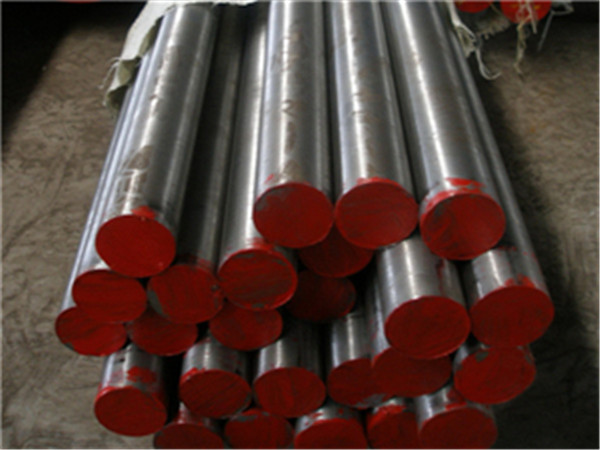

Solid round bar
Flat bar
Square bar
Hexagon bar
Block
Plate
Sheet
Wire rod
Strip



AISI

DIN

JIS

Stock

Application

Hot Work Tool Steel

H11

1.2343

SKD6

Die Casting Dies,Extrusion Dies, Hammer Dies,
Ram Dies,
Forging Dies
etc.

H13

1.2344

SKD61

H10

1.2365

SKD7



——

1.2367

——



L6

1.2714 / 1.2713

SKT4

H12

1.2606

SKD62



H21

1.2581

SKD5

Cold Work Tool Steel

D3

1.2080

SKD1

Cutting Tools, Punching Tools, Shear Bladers, Reamers, Thread Rolling Dies, Calipers, Sockets etc.

——

1.2601

~SKD11

D2

1.2379

~SKD11

——

1.2379 MOD

DC53 (Daido)

D6

1.2436

——



O1

1.2510

SKS3

O2

1.2842

——



A2

1.2363

SKD12



S1

1.2550

——



S7

1.2357

——



——

1.2767

SKT6



L2

1.2210

——



Plastic
Mould Steel

P20

1.2311

——

      Mold Base,           Core & Cavity,         Bumper Mold             etc.

P20+Ni

1.2738

——

P20+S

1.2312

——

——

1.2316

——



420

1.2083

SUS420J2

——

——

NAK80 (Daido)

Alloy Steel

4120

25CrMo4 / 1.7218

SCM420



Shafts, Gears, Drillers, Chains, Bolts, Nuts, Pins, Suds, Keys, Bites, Crankshafts, Connecting Rods, Came, Couplings  etc.

4135

34CrMo4 / 1.7220

SCM435



4130

34CrMo4 / 1.7220

SCM430

4140

   42CrMo4 /        42CrMoS4 /                1.7225

SCM440

4142

41CrMo4 / 1.7223

SCM440



4145H

——

——



4330V

——

——



4340

34CrNiMo6 / 1.6582

SNCM439



5115

16MnCr5 / 16MnCrS5 / 1.7131





5120

20MnCr5 / 20MnCrS5 / 1.7147

SMnC420H



5140

41Cr4 / 41CrS4 / 1.7035

SCr440

8620

21NiCrMo2 / 1.6523

SNCM220



8640

40NiCrMo2-2 / 1.6546

SNCM240



——

18CrNiMo7-6 / 17CrNiMo6 / 1.6587

——



9840

36CrNiMo4 / 1.6511

——



E71400

41CrAlMo7-10 / 1.8509

SACM1



——

34CrAlNi7 / 1.8550

——



Bearing Steel

E52100

100Cr6 / 1.3505

SUJ2

Bearing, Shafts
etc.

——

100CrMn6 / 1.3520

——



——

100CrMo7-3 / 1.3536

——



Spring Steel

5155

55Cr3 / 1.7176

SUP9



Springs

6150

51CrV4 / 1.8159

SUP10



9261

60CrSi7 / 1.7108

——



Carbon Steel

1010

CK10 / C10E / 1.1121

S10C



Shafts, Chains, Bolts, Nuts, Pins, Suds, Keys, Bites, Came, Couplings  etc.

1020

C22 / 1.0402

S20C

1040

CK40 / C40E / 1.1186

S40C

1045

CK45 / C45E / 1.1191

S45C

1050

CK50 / C50E / 1.1206

S50C

1055

CK55 / C55E / 1.1203

S55C



1064

CK60 / C60E / 1.1221

S58C



High Speed Tool Steel

M2

1.3343

SKH51

Reamer,
      End-mill,
Hob, Cutter, Bite, Drill, Punch, Tap, Brooch
etc.

M7

1.3348

——



M42

1.3247

SKH59

M35

1.3243

SKH55

T1

1.3355

SKH2



T15

1.3202

——



T42

1.3207

SKH57




Note:
1). √ means we have stoc
2). Delivery Condition:
Smelting: EAF+LF+VD (+ESR)
Making: Hot rolled, Cold rolled, Forged, Cold Drawn
Heat Treatment: Untreated, Annealing, N+T, Q+T
Surface: Black, Peeled, Turned, Milled, Grinded, Polished
