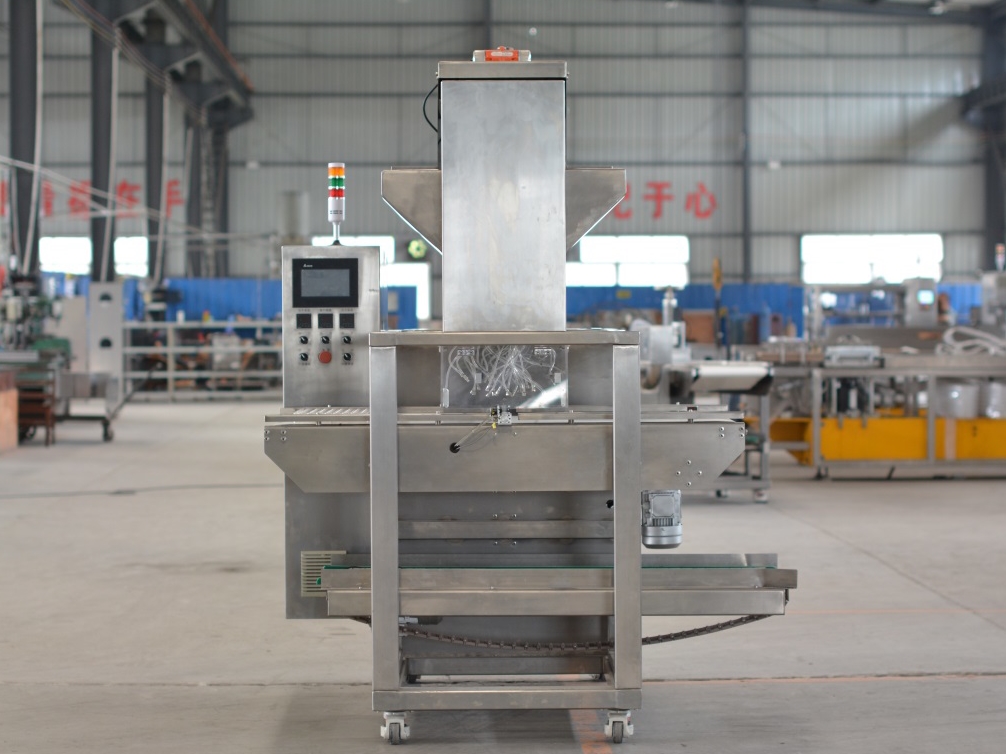

Decoration Depositor(Vertical)
Description
Download
| Chocolate Depositor Series | |||||
| No. | Product | Running Speed | Power | Weight | Dimension |
| B1 | Servo Depositor | ≤15 mould/min | 5.8 Kw | 230.0 Kg | 1.5m*1.2m*1.8m |
| B2 |
One Shot Depositor(Vertical) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B3 | One Shot Depositor(Horizontal) | ≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B4 |
Decoration Depositor(Vertical) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B5 |
Decoration Depositor(Horizontal) |
≤12 mould/min | 7.6 Kw | 250.0 Kg | 1.5m*1.25m*1.8m |
| B6 |
Large Capacity One Shot Depositor(Vertical) |
≤24 mould/min | 11.6 Kw | 350.0 Kg | 1.5m*1.25m*1.8m |
| B7 |
Large Capacity One Shot Depositor(Horizontal) |
≤24 mould/min | 11.6 Kw | 350.0 Kg | 1.5m*1.25m*1.8m |
| B8 | Mixture System & Depositor | ≤8 mould/min | 9.0 Kw | 245.0 Kg | 1.5m*1.25m*1.7m |
| B9 | Aerating Depositor | ≤12 mould/min | 3.0 Kw | 230.0 Kg | 1.5m*1.25m*1.9m |
Equipment Overview
This Decoration Depositor has strong decoration function and is also compatible with the filling function. Double-color decoration of equipment is very easy with advantages of high efficiency, good quality, low energy consumption and small loss. Its power consumption is only 50% of similar machine, and the paste loss is only 25% of similar machine.
Equipment Description:
Decoration Depositor【Type:SJ-48QB】
■ Piston mode: Vertical;
■ Decoration precision: ≤±0.05g;
■ Quantity: One color ≤48pcs, two colors ≤24pcs;
■ Servo system: Filling system and decoration system with five-axis servo linkage;
n Energy saving and environmentally friendly: Patent structure design is adopted, energy saving and environmentally friendly effect can achieve more than 50%;
■ Piston: 48 sets;
n Non-leakage design: Innovative design is adopted to ensure no paste leakage from piston;
■ Operating system: Friendly and instructive filling interface is easy for learning and operating;
■ Heat preservation: Good heat preservation is available for the hopper and depositing plate;
■ Replacement of decorating plate: Easy replacement and low use cost;
■ Filling function: It is compatible with the filling function, easy change over between decoration and filling function.
