Products
Conveying Machine
high quality
Description
Download
| Chocolate Functional Machine Series | |||||
| No. | Product | Running Speed | Power | Weight | Dimension |
| C1.1 | Mold-closing Machine | ≤8 mould/min | 1.5 Kw | 100.0 Kg | 1.5m*1.1m*1.3m |
| C1.2 | Cold-pressing Machine | ≤12 mould/min | 6.0 Kw | 220.0 Kg | 1.5m*1.3m*1.60m |
| C1.3 | Vibration Machine | ≤15 mould/min | 0.9 Kw | 100.0 Kg | 1.5m*1.3m*1.20m |
| C1.4 | Box-packing Machine | ≤10 mould/min | 0.6 Kw | 80.0 Kg | 1.5m*1.1m*1.2m |
| C1.5 | Turning Machine(180°) | ≤15 mould/min | 0.6 Kw | 100.0 Kg | 2.2m*1.3m*1.2m |
| C1.6 | Turning Machine(90°) | ≤15 mould/min | 0.6 Kw | 60.0 Kg | 1m*1m*1.2m |
| C1.7 | Conveying Machine | ≤15 mould/min | 0.6 Kw | 80.0 Kg | 1.5m*1.1m*1.2m |
| C2.1 | Whole Nuts-putting Machine | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.2 | Biscuit-placing Machine | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.3 | Biscuit-feeding Machine(Regular biscuit) | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.4 | Stick-placing Machine(Vertical) | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.5 | Stick-placing Machine(Horizontal) | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.6 | Nuts-feeding Machine | ≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |
| C2.7 |
Biscuit-feeding Machine (Irregular Biscuit) |
≤10 mould/min | 1.5 Kw | 110.0 Kg | 1.5m*1.3m*1.2m |

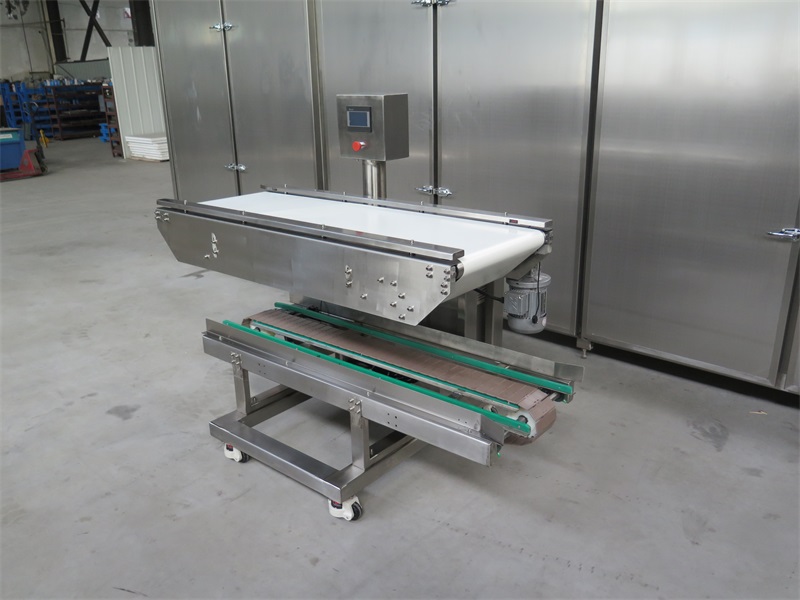

Equipment Overview
The conveying machine is used in function reservation of production line, or used for manual supplementation at the back end of functional single machine (e.g. biscuit-feeding machine and stick-placing machine) etc.
Equipment Description:
Conveyor【Type:SS-1440B】
■ Adjustable transmission speed & frequency conversion;
■ Upper belt anti-deviation design
■ Easy cleaning and replacement of the lower link plate;
■ Flexible exchange of position with single machine of production line.
