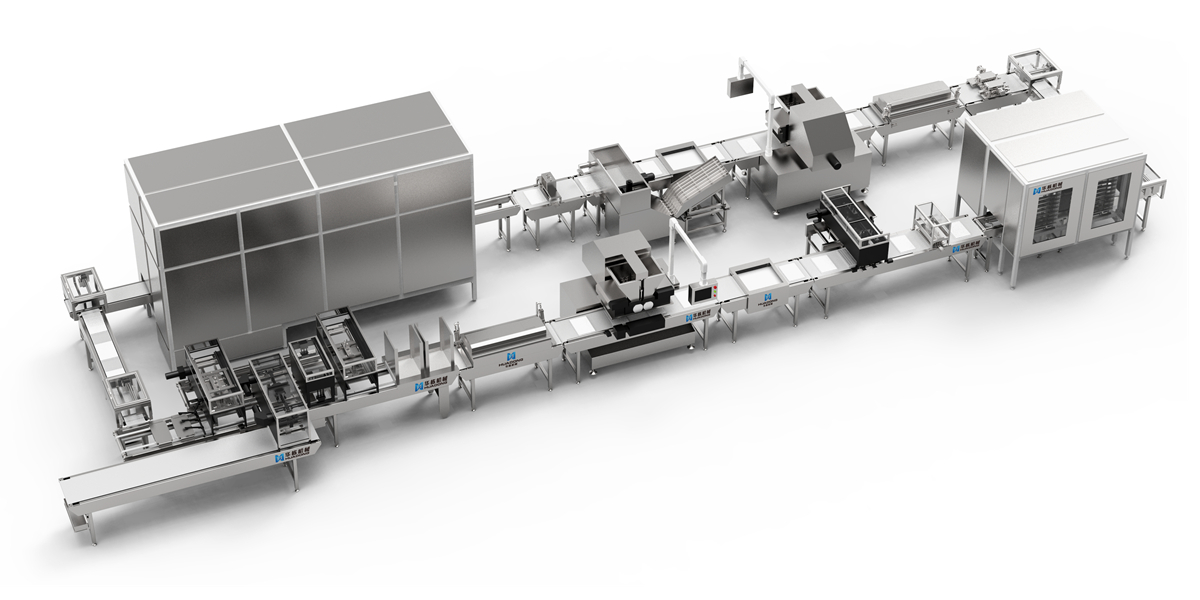

CHOCOLATE CNC DECORATION LINE(QHZ)
chocolate machine, chocolate production line
Description
Almost all chocolate can be produced,based onthe customer's own product creation and imagination
PERFORMANCE
1.Full automatic production line
2.Servo motor high precision control system
3.X,Y,Z axis cnc depositing technology
4.One shot technoligy
5.Lifting cooler
6.Auto mechanical arm demoulding technoligy
7.Modular design
MODULAR DESIGN
1.Convenient for debugging
2.Mould structure, each part can be assembied freely, to meet the different needs of customers
SJZ 48 / 72 / 96 DEPOSITOR (OPTIONAL)
Servo motor drives the entire pouring head full range of movement, can produce multi-color, a variety of shapes, a variety of pattern chocolate
What is a one-time large sandwich pouring technology:
Pouring head in a pouring, according to the trajectory of the chocolate shape to change the casting volume and speed in order to achieve a more uniform chocolate shell thickness, the sandwich to maximize the amount
Discription:
1. bilateral multi-plunger push injection system - maximize production
2. omni-directional casting system - to maximize casting range
3. siemens servo motor control system - maximize the accuracy
LIFTING COOLER
1. The design of the elevated cooling tunnel greatly shortened the length of the cooling tunnel and saved the workshop space
2. High cooling efficiency, energy conservation
3. High quality material design, smooth and smooth conveying, no noise
4. Continuous cooling output system, to maintain a constant temperature
2D/3D OUTPUT MODULE
1. after the first twist knock, to ensure the sugar-type all off
2. parting mold using automatic robotic device
3. adopting crank-type suction device to greatly shorten demoulding time
4. sucker demolding mode, so that the chocolate after stripping more neat and clean
5. the machine can be directly connected with the packaging machine, or directly fed into the packaging machin
3d three-dimensional templates include: torsional mode, knocking mode, parting, stripping, clamping.
2d plane template includes: torsional mode, knock mode, stripping.
BISCUIT FEEDER(OPTIONAL)
Chocolate canter filled biscuit、Chocolate single - layer biscuit、Multicolor chocolate decorating biscuit
NUT FEEDER (OPTIONAL)
Completed or grained nut
STICK FEEDER (OPTIONAL)
vertical or horizontal feeding
