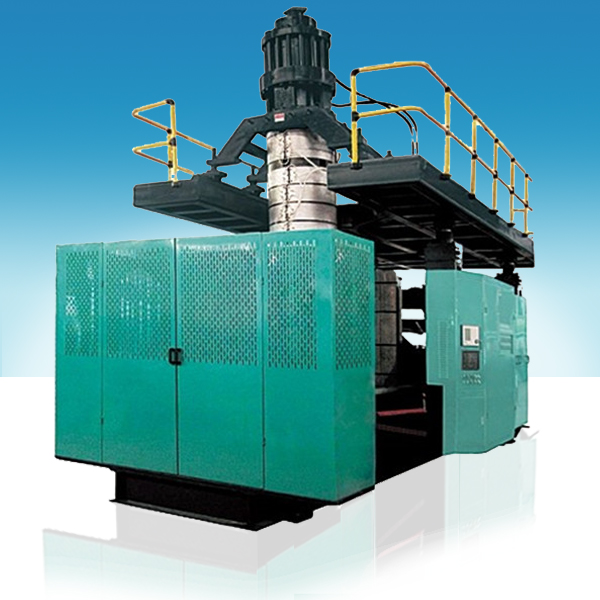

Accumulator Blow Moulding Machine KLB100

high quality

RFQ

Description

Download

Specification		KLB100
Material	PE.PP.ABS…
Max container capacity	L	120/160
Output(dry Cycle)	pc/nr	350
Dimension(L×W×H)	M	6.0×3.1×4.8
Total weight	ton	17
Clamping Unit
Clamping force	KN	500
Platen opening stroke	mm	550-1400
Platen size	mm	1050×1100
Max mould size(W×H)	mm	900×1200
Mould thickness	mm	560-650
System Pressure	Mpa	16
Power
Total power	Kw	150/170
Fan power for screw	Kw	1
Oil pump power	Kw	37
Air pressure	Mpa	1.2
Air consumption	m3/min	1
Average energy consumption	KW/h	65/75
Servo motor power	Kw	4
Extruder unit
Screw diameter	mm	100
Screw L/D ratio	L/D	25
Plasticising capacity	Kg/hr	180/220
Number of heating zone	zone	5
Extruder heating power	KW	30
Extruder driving power	KW	55/75
Die-head
Power of die heating	KW	24
max diameter of head tooling	mm	500
Accumulator capacity	L	14/16

*Figures and data in this catalogue are subject to change without notice due to constant research and development.

KLB100 extrusion blow molding machine, which is produced by our company, is mainly applicable to the production of blowing barrels, motorcar gasoline tank, toolbox and other large plastic hollow products.

It consists of main machine, electric, hydraulic, pipe and other selection functional parts.

The main machine in including: extrusion device; accumulator head; clamping unit; frame; functional blowing device (optional); and manipulator (optional), etc.

Electric system in including: the heating and temperature controlling system of die-head and extruder; parison controlling system (optional); PLC and related

safe-guarding system.

Hydraulic system: hydraulic supply and its pressure, direction, flow controlling parts.

Pipeline parts: distribution of machine pipe, including oil, water and air pipe.

The shaping principle is “extruding- blowing”.The extruder adopts inverter to adjust、the speed to get the great timing range, which could meet the producing requirements for different products. The fused plastic plasticized by the extruder, is extrude into the accumulator head. When it reaches a certain volume, parison controller (optional) will constantly change the opening range of the die. And then it is injected into mould and blown out the products. Finally the manipulator (optional) will take the product out. Thus a complete circle finished.

This machine optional function parts are including: bottom blowing device, manipulator, and parison controller, which are subject to the configurations of the purchase order.
