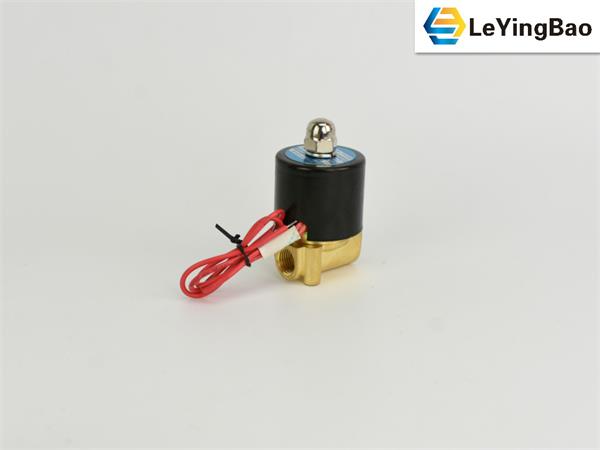

2.5mm Brass Water Solenoid Valve
Description
Download
2W Solenoid valve
2/2 brass Solenoid valve which is Direct Acting type ,Diaphrgam Structure ,Can be work at Zero Pressure ,DIN Coil and Leading wire coil can be choosed ,220VAC and 24VDC is normal voltage ,Other voltage can be customized ,NPT thread is available
Ordering Code
Overall Dimension
|
Mode |
A |
B |
C |
D |
G |
|
2W025-06 |
66 |
30 |
75 |
40.5 |
G1/8" |
|
2W025-08 |
66 |
30 |
75 |
40.5 |
G1/4" |
|
2W040-10 |
72.5 |
32 |
83 |
55 |
G3/8" |
Product parameters
|
Mode |
Media |
Working type |
Orifice (mm) |
Cv Valu |
Fluid viscosity |
Working pressure (Mpa) |
Max.pressure (Mpa) |
Working temp（℃） |
Rated voltage |
power |
Valve body material |
Seal material |
|
2w025-06 |
Air Water Oil |
Direct action |
2.5 |
0.23 |
〈20CST |
Air 0-1.0 Water 0-0.7 Oil 0-0.7 |
1.0 |
-5-80 |
DC12-24V AC24V-380V ±10% |
DC20.9W AC26VA |
Brass |
NBR EPDM VITON |
|
2w025-08 |
2.5 |
0.23 |
||||||||||
|
2w040-10 |
4 |
0.6 |
Product features of 2W series solenoid valve
1.The direct acting diaphragm structure has no pressure to start, and expands its application field.
2.The use of flat diaphragm structure is reliable and enhances the service life of the product.
3.The use of plastic coil can improve the safety of the product in many environments.
