LM series Gantry Cutting Machine with Flame and Plasma Cutting

high quality, supplier, hot sale, cutting machine manufacturer, factory

RFQ

Description

Download

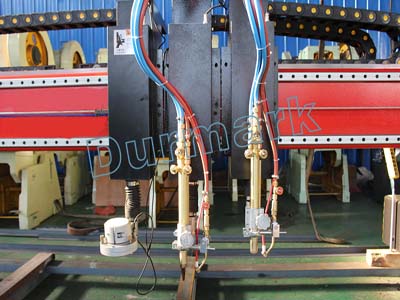

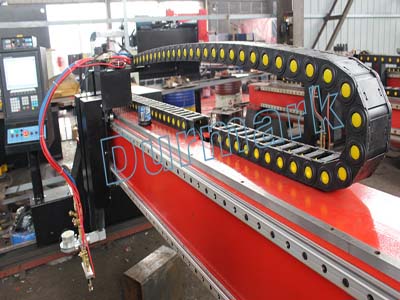

The CNC cutting machine for the gantry structure, is for metal sheet metal cutting equipment. Can achieve a variety of metal materials according to any pattern cutting cutting. Cutting the cutting surface in general without the need for surface processing. With a high degree of automation, easy to use, high precision, high reliability, operation, maintenance is very simple, widely used in a variety of machinery manufacturing for metal sheet cutting cutting. With 10.4 "VGA color LCD display, the system with automatic diagnostic function. Horizontal span of 3m, 4m, 5m, 6m and other specifications, are used bilateral drive, double-axis linear guide, standard for the horizontal gauge 4m, vertical rail Length of 8m, single flame or single plasma cutting method, automatic ignition; can also be added into the flame and plasma dual-use cutting method. Longitudinal guide length of each section 2m, according to user requirements to install the extended rail and widen the beam span; Can be configured according to user requirements more cutting torch or special-shaped cutting and strip cutting dual-use, can also be configured with intersecting line cutting support.

CNC flame, plasma cutting machine is a new type of thermal cutting equipment. Its working principle is based on the oxygen + acetylene or propane compressed gas as the working gas, high temperature and high speed flame (or plasma arc) as a heat source, the metal will be cut by the local melting, and at the same time with high-speed air flow of molten metal Walking, forming a narrow slit. The device not only cutting speed, slit narrow, incision formation, heat affected zone is small, the workpiece deformation is low, simple operation, but also has significant energy saving, feed effect.

◇ pneumatic clamping positioning, pneumatic guns, send guns, up and down the speed of stability, rapid.

◇ can be a single gun, gun or multi-gun welding at the same time, save time and improve work efficiency.

◇ rotary head with DC motor or AC variable frequency motor drive, smooth operation, uniform weld appearance.

◇ imported or domestic well-known brand programmable controller core, low failure rate, stable and reliable performance.

◇ bed with horizontal structure, welded by the structural parts after finishing from finishing to ensure that the bed is not deformed rails.

◇ The end of the spindle is equipped with a welding fixture or a three-jaw chuck for clamping the workpiece.

◇ tailstock with pneumatic top tight way, the end of the workpiece according to the different types of different use of different fixture fixture or activities.

◇ tailstock in the bed slide on the slide, adjust the nose of the tailstock to adapt to different lengths of the workpiece.

◇ welding machine according to the workpiece welding position of the different, along the direction of the rail to move to the appropriate location.
