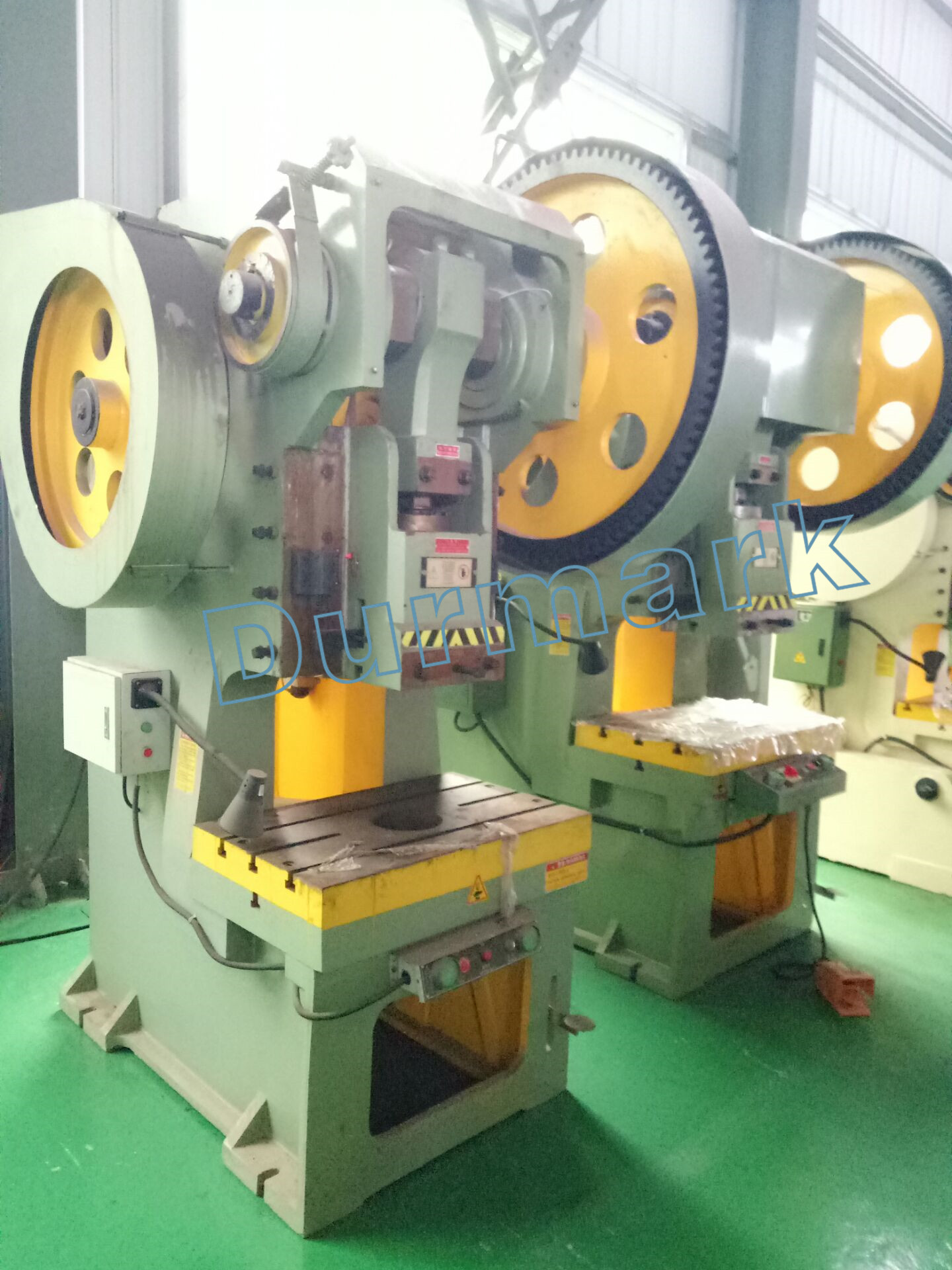

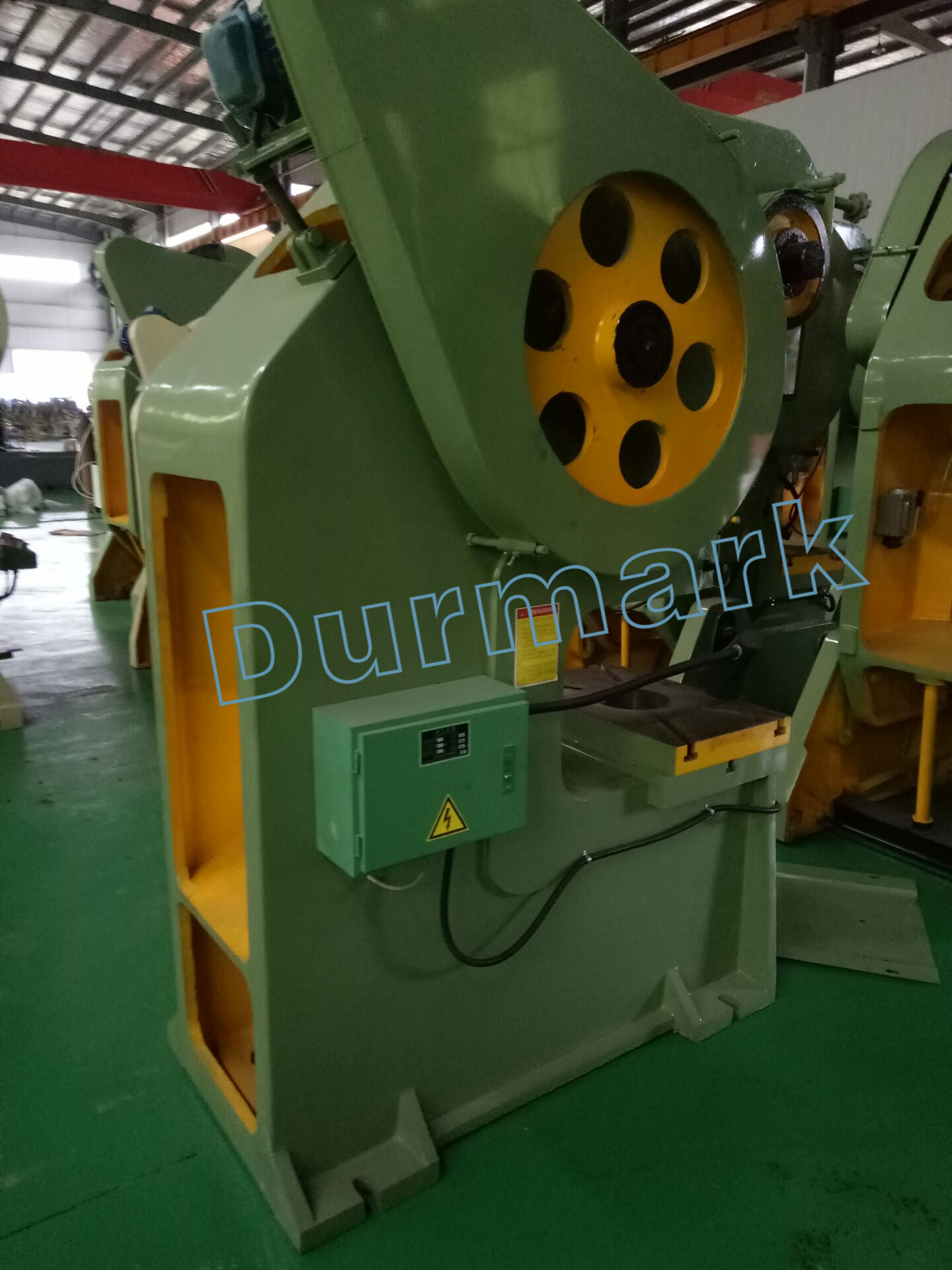

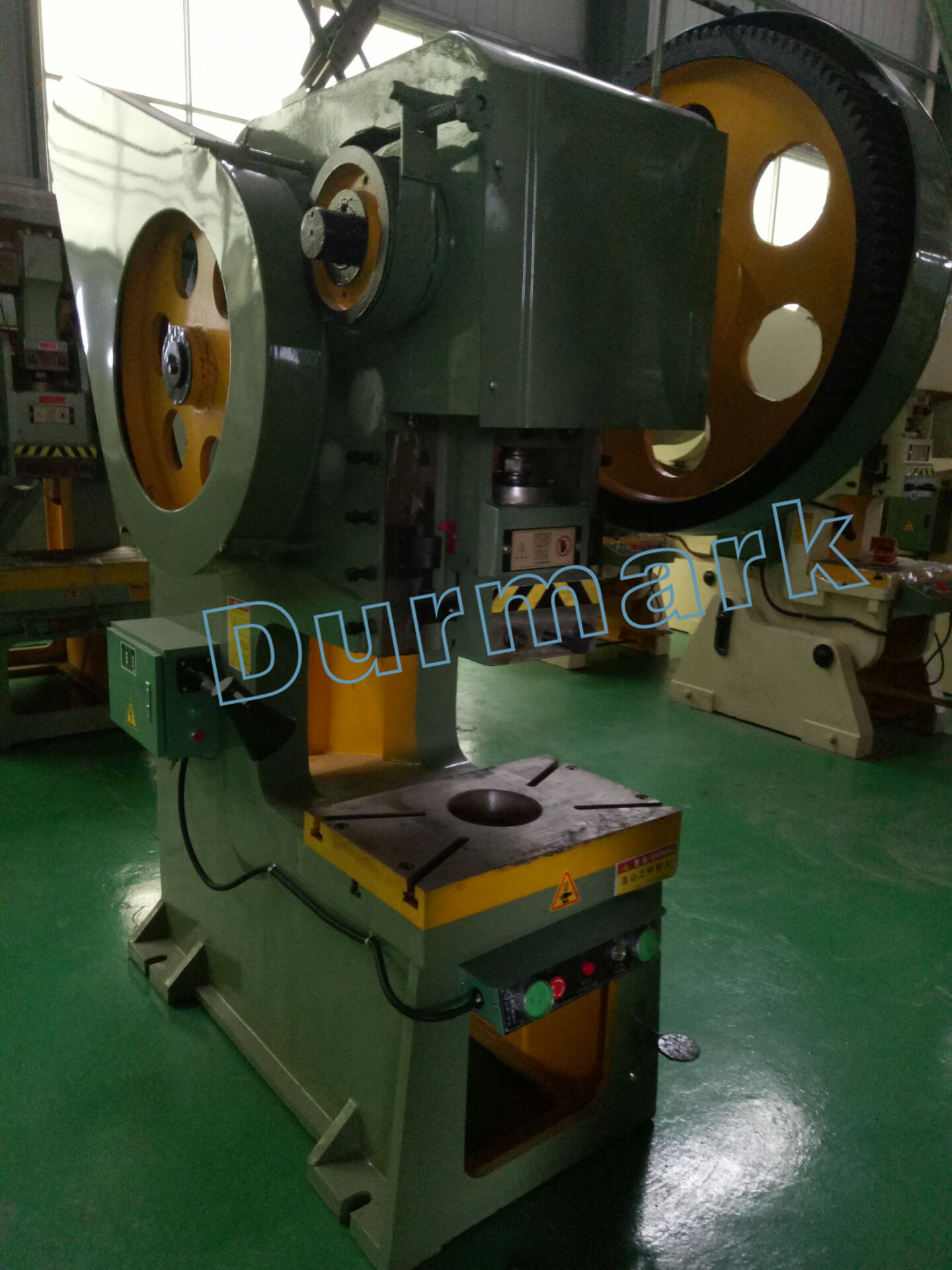

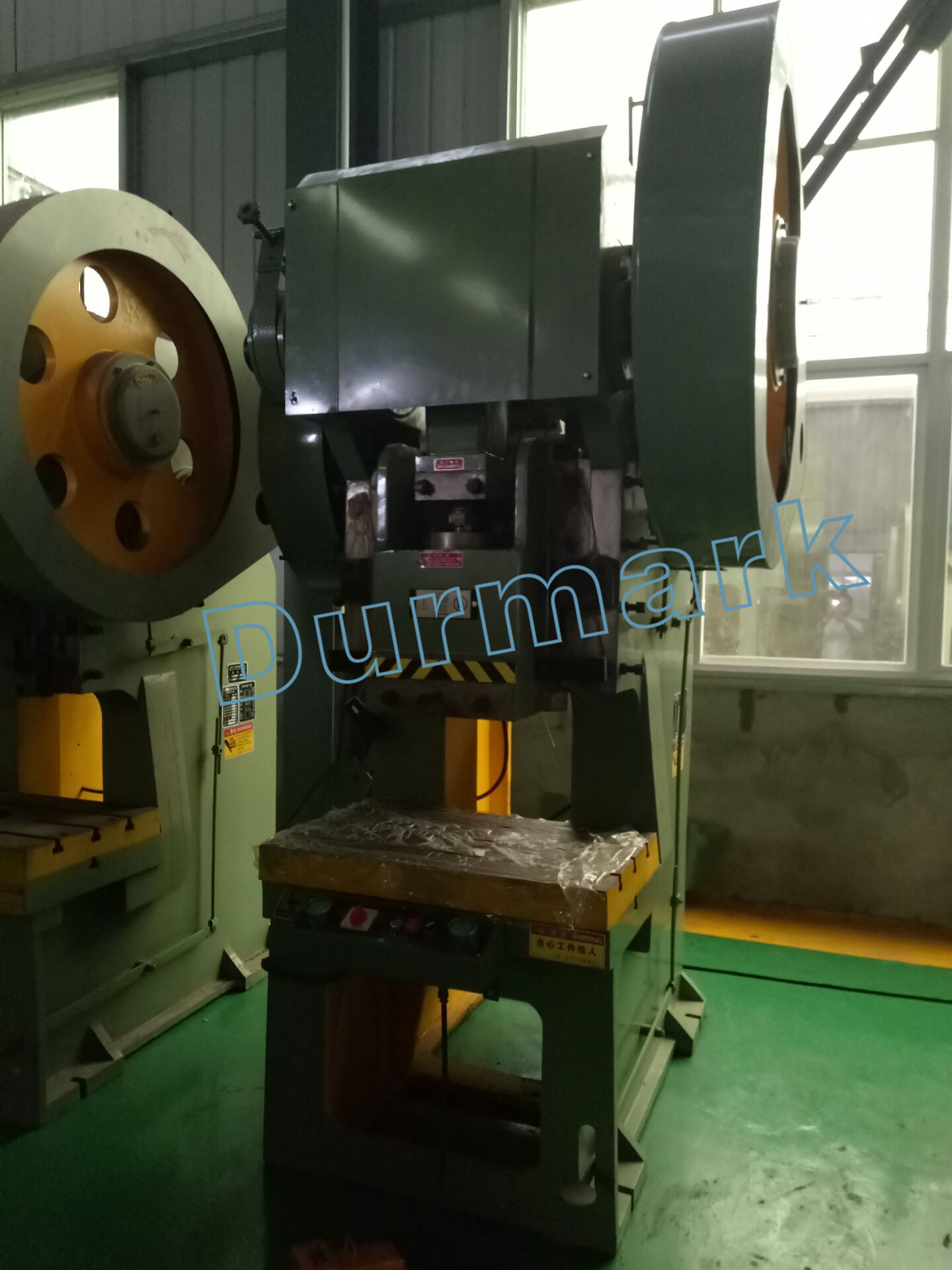

J21 Open Back C Type Mechanical Sheet Metal Steel Hole Press Punching Machine

Use

Suitable for blanking, punching, forming, bending, light stretching, etc kinds of cold punching process.

Widely used in electrical appliances, equipment, vehicles, machinery, agricultural machinery, hardware and other industrial fields.

Construction

1.Casting body, high strength.

2.C-type frame, easy for mould loading and process bigger size material.

3.Crankshaft is horizontal, easy for maintain.

4.Rigid key switch, simple structure.

5.Belt brakes, easy to adjust.

6.Crumpled Insurance, it can protect whole machine not destroy when overload.

1. With foundry structure for better vibration resistance. .

2. Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.

3. the good rigidity of Casting box structure slider Built-in block collapsed overload protection device, the structure is simple, if slider overload, fuse collapsed destroyed to protect the machine and mold from damage.

4. four elongated triangular rail, easy for adjustment.

5. Adopts hands and foot switch operation buttons design, it’s easy to activate continuous, single and adjustment practices.

6. Compatible with the corresponding punch automatic feeding system, fully automated production, low cost and high efficiency.
