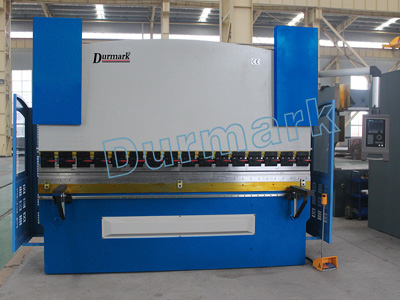

CNC Plate Bending Machine PSH Hydraulic Press Brake

Main Structure and Working Principle

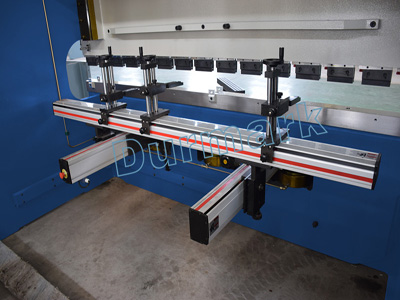

This type of machine is consist of  frame, slider, back-gauge system, hydraulic system, control system and die.

1. OEM design, attractive appearance, well-made.

2. Steel weld structure,  Strong frame,  high  rigidity and Excellent shock absorber.

3. Structural parts are derusted by weltering sand and sprayed with anti-rust paint.

4. Column,upper slider, down worktable are elaboration processed by the best word-class NC floor type boring and milling machine, thus the parallelism and verticality of installation surfaces are guaranteed

5. Upper dynamic bending design, working smoothly, easy to operate and safe.

6. The bottom dead point has a pressure maintaining and delay function, to ensure the accuracy of work piece.

Hydraulic System

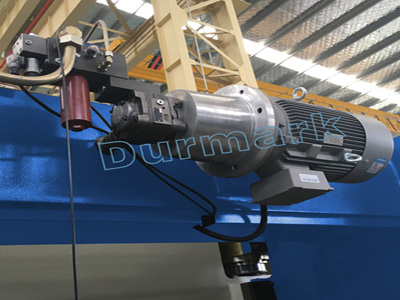

1. Siemens main motor, strong power, low noise.

2. Japan NOK sealing ring, sealed well, reliable working, long-life.

3. Original America PARKER or EATON pipe connection.

4. Clear and intuitive oil level display.

5. Adopt integrated design, compact structure, strong sealing and long life

6. The hydraulic system is divided into coarse and precise filters, high filtration precision.

7. The hydraulic system have over load protect function.

Electrical control system

1. Electrical components meet international standards, safety and reliability, strong anti-interference ability, electric control cabinet has the heat dissipation function.

2. With movable foot switch operation, there is an emergency stop function

3. Most electrical components adopt Schneider brand products
