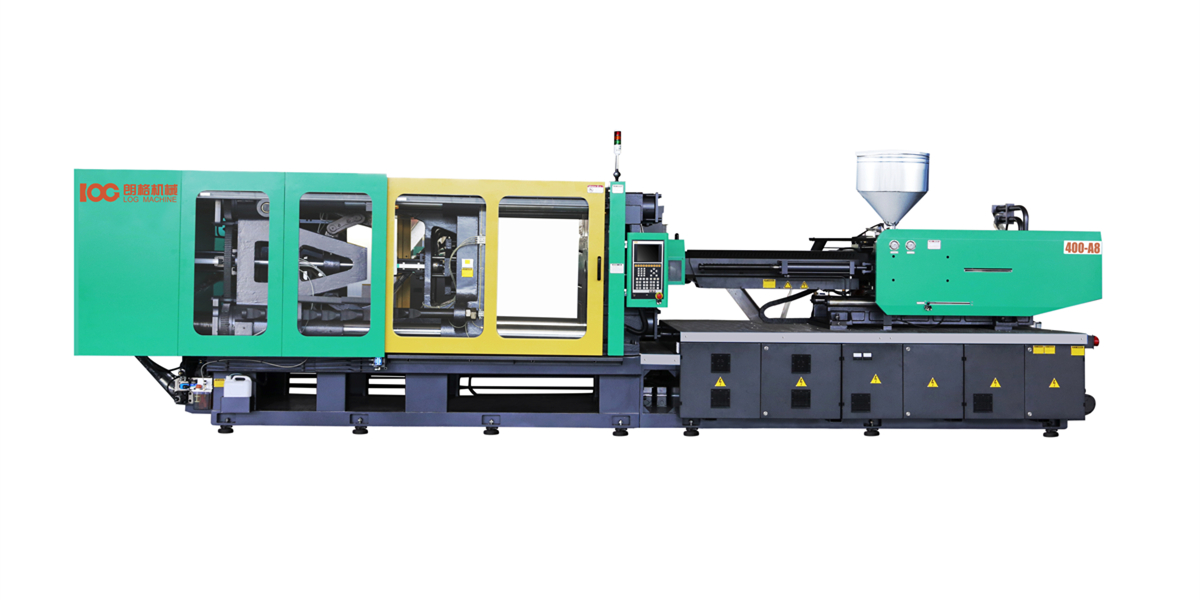

LOG-A8 400T Variable Pump Injection Molding Machine

high quality

RFQ

Description

Download

Specifications of LOG400

INJECTION		LOG400
INJECTION		A	B	C
Shot volume	cm³	1385	1810	2290
Shot weight (ps)	G	1260	1646	2084
Shot weight (ps)	oz	44	58	73
Max injection rate	cm³/s	311	406	514
Screw diameter	Mm	70	80	90
Plasticizing rate	Kg/h	167	231	327
Injection pressure	Mpa	206	158	125
Screw L:D ratio		22:1	21:1	19:1
screw speed	r/min	0~135
CLAMPING
Clamping force	Kn	4000
Opening stroke	Mm	710
Platen size	MmXmm	1060*1040
Space between tie bars	MmXmm	730*710
Mold thickness (Min--Max)	Mm	250~730
Hydraulic ejection stroke	Mm	185
Hydraulic ejection force	Kn	111
POWER UNIT
Hydraulic system pressure	Mpa	17.5
Pump motor	Kw	37
Heating capacity	Kw	32.3
Number of temp control zones		5+ (nozzle)
GENERAL
Dry-cycle time	sec	5.1
oil tank capacity	L	820
Machine dimensions	Mxmxm	8.61.752.35
Machine weight	kg	14970

Clamping Unit

1 .Toggle adopting the conjoined structure, improving the hardness of toggle, ensuring the uniform of toggle manufacture-size, minimizing the gap between pipe and pin, improve the accuracy and application life of toggle.

2.First clamping platen using the box-type structure design, (thicken the thickness of platen, improving the hardness of platen, efficiently minimizing the deform caused by the force of tie bar.

3.Unique third-platen flange design, when the third- platen deforms by the pressure, by the support of flange and tie bar. a reverse torque will minimizing the deform of the third-platen.

4. Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting (the mold thickness in manual or automatic mode.

5.Steel bush in clamping unit adopts new structure, arrange rational holes of graphite to improve the effect of steel bush lubrication and the wear-resistance, reduces the usage of lubrication oil.·


Conjoined toggle	High-hardness Platen	Platen Flange	Gear-adjusting ring	Graphite Bush

Injection Unit

1 .Injection unit adopts double-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.

2. Enlarged-cylinder, adopting two-cylinder design, effectively prevent the adhesive- material leaking phenomenon caused by the machine vibration or other reasons while the nozzle is under high-speed operation.

3. Adopting graphite bush, improving the wear- resistance, reducing the frequency of using lubrication oil, effectively improve the cleanness of the injection part.

4.Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.

5.Bridge-style design, for different L/D ratio plasticizing parts.
