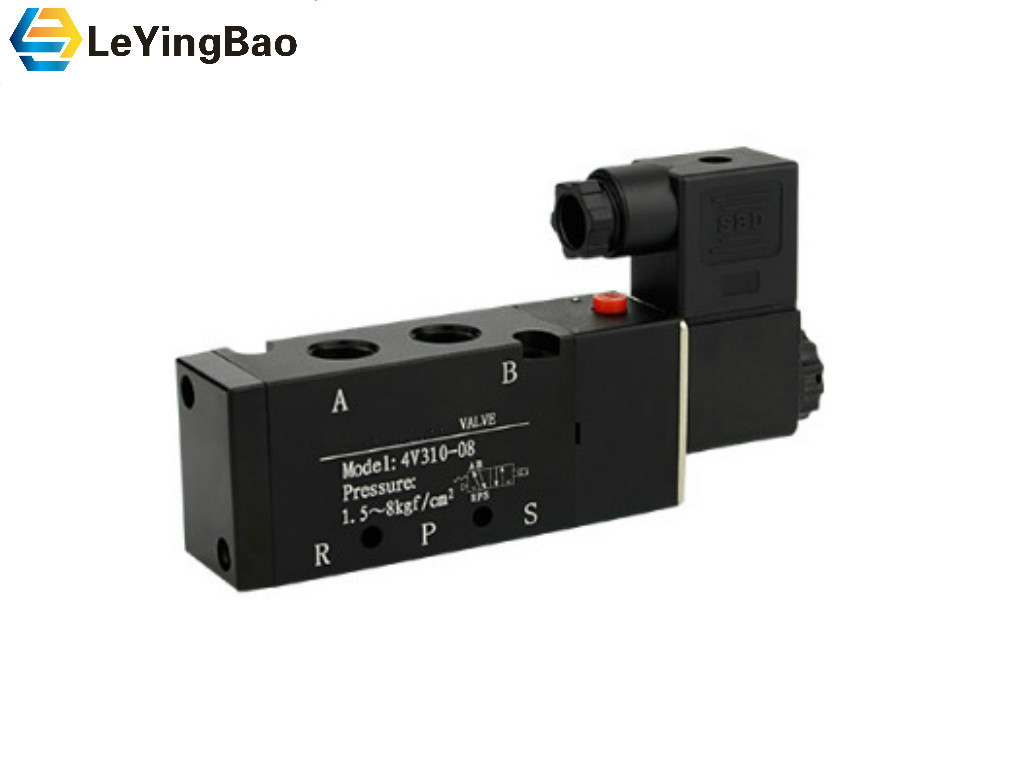

4V300 Air Controlled Solenoid Valve
Delivery in the month, 1 year warranty, Quality assurance
Description
Download
4V300
4V300 Seriers valve which is Pilot type soleniod valve ,Including G1/4 and G3/8 connector port ,Can work at 1.5-8bar ,Thread type and Namur type are available, in this series ,4V310-10 Pnuematic valve is most regular item for Thread type ,And 4V310-08B is Most regular item for Namur type
Ordering Code
| Mode | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 |
| 4A310-08 | 4A320-08 | 4A330C-08 | 4A330E-08 | 4A330P-08 | 4A310-10 | 4A320-10 | 4A330C-10 | 4A330E-10 | 4A330P-10 | |
| Type | 5/2 | 5/3 | 5/2 | 5/3 | ||||||
| Flow rate | 25mm2（Cv=1.40） | 18mm2（Cv=1.00） | 30mm2（Cv=1.68） | 18mm2（CV=1.0） | ||||||
| Model | 3V310-08 | 3V320-08 | 3A310-08 | 3A320-08 | 3V310-10 | 3V320-10 | 3A310-10 | 3A320-10 |
| Type | 3/2 | 3/2 | ||||||
| Flow rate | 25mm2（Cv=1.40） | 30mm2（Cv=1.68） | ||||||
| Connection ports | Inlet = Outlet = Exhaust = G1/4" | Inlet = Outlet = G3/8" Exhaust = G1/4" | ||||||
| Media | Clean air | |||||||
| Working type | Pilot | |||||||
| Working pressure | 0.15 ~ 0.8MPa | |||||||
| Max. pressure | 1.2MPa | |||||||
| Ambient temp | -5 ~ 50℃ | |||||||
| Voltage tolerance | ±10% | |||||||
| Power | AC:4.5VA DC:3W | |||||||
|
Insulation class Protection class |
F class. IP65 | |||||||
| Terminal | Flying Lead Or Din43650B PIN | |||||||
| Frequency | 5 cycles/s | |||||||
| Response time | 0.05s | |||||||
Technical characteristics
1, guide way: external and internal optional;
2. Sliding column structure, good sealing, sensitive reaction;
3, three position solenoid valves have three central functions to choose from.
4, double head two position solenoid valve has memory function;
5. The inner hole is processed by special technology with small friction resistance, low starting air pressure and long service life.
6. No fuel lubrication is needed.
7. The valve group can be integrated with the base to save installation space.
8. The installation of manual equipment is conducive to the installation and commissioning.
9. There are a variety of standard voltage grades for selection.
