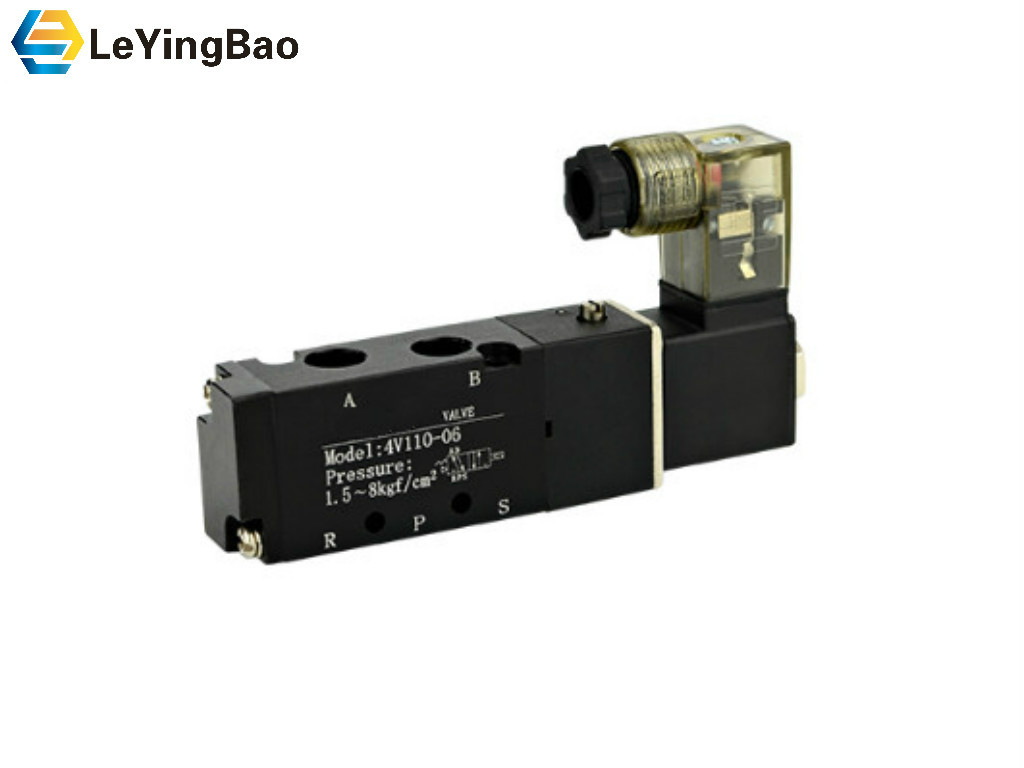

4V100 Air Controlled Solenoid Valve
Delivery in the month, 1 year warranty, Quality assurance
Description
Download
4V100
4V100 Series Pneumatic valve have 5/2 ,5/3 ,3/2 type solenoid control valve and air control valve ,With M5x0.8 and 1/8 connection size ,Thread and Namur type are available ,Voltage can be customized from 12V - 240V DC/AC
Ordering Code
| Mode | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |
| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
| Type | 5/2 | 5/3 | 5/2 | 5/3 | ||||||
| Flow rate | 10mm2（Cv=0.56） | 7mm2（Cv=0.40） | 12mm2（Cv=0.67） | 9mm2（Cv=0.5） | ||||||
| Model | 3V110-M5 | 3V120-M5 | 3A110-M5 | 3A120-M5 | 3V110-06 | 3V120-06 | 3A110-06 | 3A120-06 |
| Type | 3/2 | 3/2 | ||||||
| Flow rate | 10mm2（Cv=0.56） | 12mm2（Cv=0.67） | ||||||
| Connection ports | Inlet = Outlet = Exhaust = M5x0.8 | Inlet = Outlet = Exhaust = G1/8" | ||||||
| Media | Clean air | |||||||
| Working type | Pilot | |||||||
| Working pressure | 0.15 ~ 0.8MPa | |||||||
| Max. pressure | 1.2MPa | |||||||
| Ambient temp | -5 ~ 50℃ | |||||||
| Voltage tolerance | ±10% | |||||||
| Power | AC:2.5VA DC:2.5W | |||||||
|
Insulation class Protection class |
F class. IP65 | |||||||
| Terminal | Flying Lead Or Din43650C PIN | |||||||
| Frequency | 5 cycles/s | |||||||
| Response time |
0.05s |
|||||||
Technical characteristics
1, guide way: external and internal optional;
2. Sliding column structure, good sealing, sensitive reaction;
3, three position solenoid valves have three central functions to choose from.
4, double head two position solenoid valve has memory function;
5. The inner hole is processed by special technology with small friction resistance, low starting air pressure and long service life.
6. No fuel lubrication is needed.
7. The valve group can be integrated with the base to save installation space.
8. The installation of manual equipment is conducive to the installation and commissioning.
9. There are a variety of standard voltage grades for selection.
