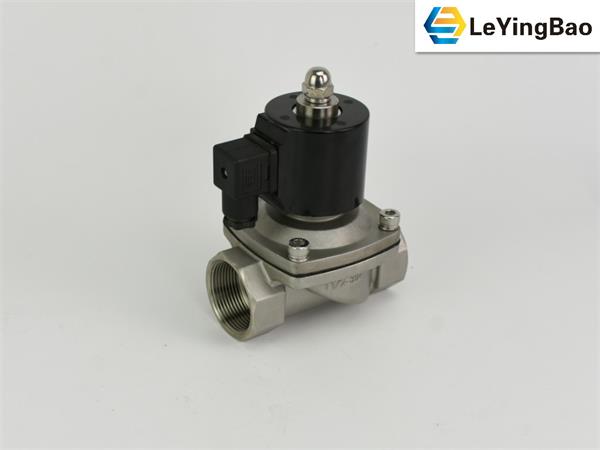

40mm Stainless Steel Water Solenoid Valve
Description
Download
2W Solenoid valve
2Way Solenoid valve are widely used in Water,Air,Oil ,Which pressure range at 0-7bar ,Max 10bar ,Standard specification as below : Normally closed ,Brass body ,NBR Seal ,NC ,G thread ,Other specification can be customized ,Like SS304 Body ,SS316 body ,Viton Seal ,NPT Thread etc
Ordering Code
Overall Dimension
|
Mode |
A |
B |
C |
D |
K |
|
2w160-10 |
93 |
56 |
106 |
69 |
G3/8" |
|
2w160-15 |
93 |
56 |
106 |
69 |
G1/2" |
|
2w200-20 |
100 |
55 |
117 |
73 |
G3/4" |
|
2w250-25 |
104 |
78 |
125 |
99 |
G1" |
|
2w350-35 |
141 |
93 |
172 |
124 |
G1 1/4" |
|
2w400-40 |
141 |
93 |
172 |
124 |
G1 1/2" |
|
2w500-50 |
157 |
124 |
195 |
172 |
G2" |
Product parameters
| Mode | Media | Working type | Orifice (mm) | Cv Valu | Fluid viscosity | Working pressure (Mpa) | Max.pressure (Mpa) | Working temp（℃） | Rated voltage | power | Valve body material | Seal material |
| 2w160-10 | Air，Water，Oil | Direct action | 16 | 4.8 | 〈20CST | Air 0-1.0 Water 0-0.7 Oil 0-0.7 | 1 | -85 | DC12-24V AC24V-380V ±10% | DC23.4W AC26VA | Brass | NBR EPDM VITON |
| 2w160-15 | 16 | 4.8 | Stainless steel Pvc | |||||||||
| 2w200-20 | 20 | 7.6 | ||||||||||
| 2w250-25 | 25 | 12 | ||||||||||
| 2w350-35 | 35 | 24 | DC40W AC50VA | |||||||||
| 2w400-40 | 40 | 29 | ||||||||||
| 2w500-50 | 50 | 48 |
Product features of 2W series solenoid valve
1.The direct acting diaphragm structure has no pressure to start, and expands its application field.
2.The use of flat diaphragm structure is reliable and enhances the service life of the product.
3.The use of plastic coil can improve the safety of the product in many environments.
