Steam Solenoid Valve 2L
Description
Download
2L solenoid valve

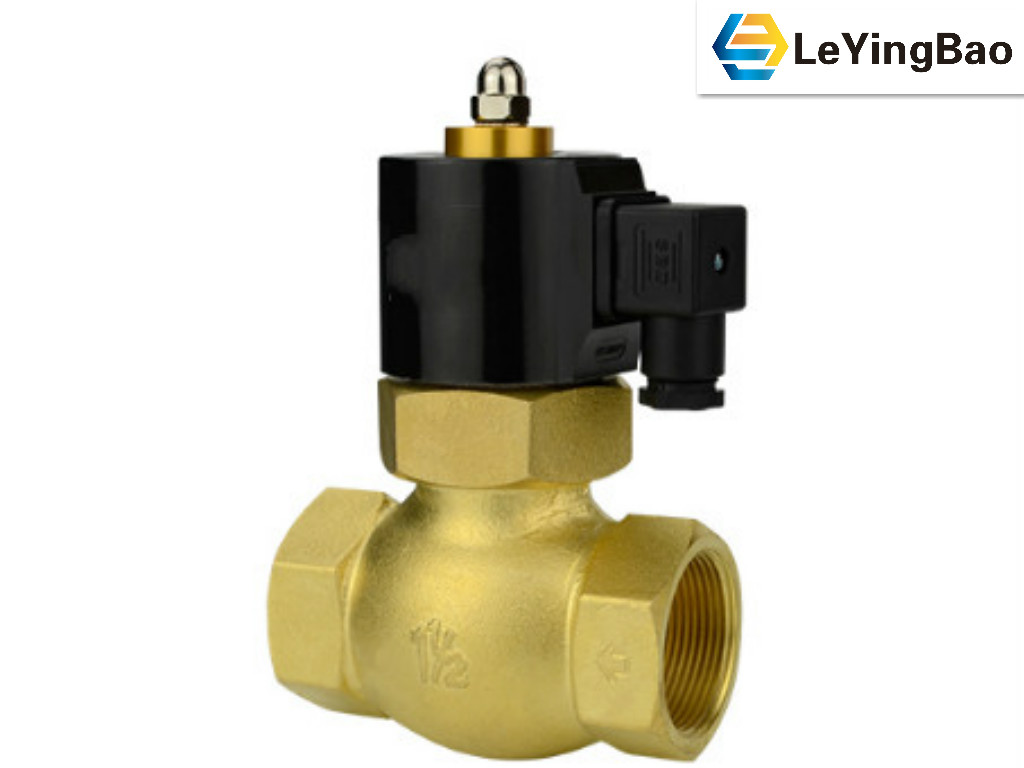

2L Steam solenoid valve is suitable for high temperature fluid flow as it is PTFE seal and H class coil ,Piston Type steam valve is Top-Centre Structure ,Automatic sealing compensation extened the sevice life of valve ,Size from G1/2 - G2 With large orifce ,DIN Coil and Leading wire coil can be choosed ,Widely used in Bolier .Vapor and hot water
Ordering Code
Overall Dimension
|
Mode |
A |
B |
C |
D |
G |
|
2L170-10 |
125 |
42 |
146 |
82 |
G3/8" |
|
2L170-15 |
125 |
42 |
146 |
82 |
G1/2" |
|
2L170-20 |
125 |
42 |
146 |
82 |
G3/4" |
|
2L200-25 |
136 |
52 |
162 |
90.5 |
G1" |
|
2L300-35 |
148 |
74 |
185 |
111 |
G1 1/4" |
|
2L300-40 |
148 |
74 |
185 |
111 |
G1 1/2" |
|
2L500-50 |
176 |
94.5 |
223 |
163 |
G2" |
Product parameters
|
Mode |
Media |
Working type |
Orifice (mm) |
Cv Valu |
Fluid viscosity |
Working pressure (Mpa) |
Max.pressure (Mpa) |
Working temp（℃） |
Rated voltage |
power |
Valve body material |
Seal material |
|
2L170-10 |
Air Water Oil |
Direct action |
17 |
4.8 |
〈20CST |
0.1~1.5 |
2.5 |
-5-180 |
DC12-24V AC24V-380V ±10% |
DC40W AC50VA |
Brass |
PTFE close |
|
2L170-15 |
17 |
4.8 |
||||||||||
|
2L170-20 |
17 |
4.8 |
||||||||||
|
2L200-25 |
22 |
12 |
||||||||||
|
2L300-35 |
30 |
20 |
||||||||||
|
2L300-40 |
30 |
20 |
||||||||||
|
2L500-50 |
50 |
48 |
Product features of 2W series solenoid valve
1.The direct acting diaphragm structure has no pressure to start, and expands its application field.
2.The use of flat diaphragm structure is reliable and enhances the service life of the product.
3.The use of plastic coil can improve the safety of the product in many environments.
