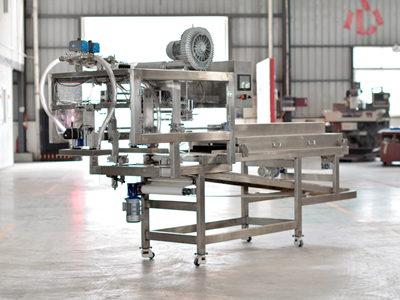

Vacuum Demolding & Pre-heating Machine
Description
Download
|
Chocolate Demolding & Pre-heating Machine Series |
|||||
|
A1 |
Heating Conveying Machine |
≤15 mould/min |
6.0 Kw |
120.0 Kg |
6m*1.1m*1.2m |
|
A2 |
Vacuum Demolding & |
≤10 mould/min |
9.0 Kw |
210.0 Kg |
3.6m*1.1m*1.8m |
|
A3 |
Rapping Demolding & |
≤10 mould/min |
9.0 Kw |
230.0 Kg |
3.6m*1.1m*1.8m |
|
A4 |
Multi-function Demolding Machine |
≤12 mould/min |
4.2 Kw |
350.0 Kg |
4.2m*1.5m*1.8m |
|
A5 |
Large Demolding Machine |
≤24 mould/min |
5.2 Kw |
420.0 Kg |
4.2m*3.8m*1.9m |
|
A6 |
Heating Tunnel |
≤15 mould/min |
5.3 Kw |
450.0 Kg |
2.2m*1.2m*2.4m |
|
A7 |
Small Heating Machine |
≤15 mould/min |
3.5 Kw |
120.0 Kg |
1.5m*1.1m*1.2m |
■ Mode of demolding : By vacuum
■ Demolding ability: 3D mold≤ 300kg/h;
2D mold≤500kg/h;
■ Over turning and butt joining: These features provide to achieve the packaging of the product as per the direction;
■ Auto packaging: The product can be directly packed into box immediately after demolding , which is easy and cost saving;
■ Flexible parameter setting: The number and frequency of mold-rapping, the distance and angle of the connection, the parameter setting of flexibility is more flexible to the demolding of different products;
■ 3D demolding system: Auto demolding and closing of 3D mold;
■ PLC + servo control system: Electronic control system using the concept of integration and optimization makes the PLC and servo control more efficient and reliable;
■ Smart connection with the packaging machine: Once the packaging machine breaks down, the device will automatically stop;
■ Perfect mold pre-heating: Uniform hot air convection design allows sufficient mold pre-heating.
